Heavy-Duty Single Horizontal Sheave Assembly
Heavy-Duty Single Horizontal Sheave Assembly
SKU:RIG-75ae92
Powerful and reliable single horizontal sheave assembly designed for heavy lifting and pulling tasks in industrial environments.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Heavy-Duty Single Horizontal Sheave Assembly
$899.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Single Horizontal Sheave Assembly
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy-Duty Single Horizontal Sheave Assembly is a robust solution designed for heavy lifting and pulling tasks, with a substantial capacity of 25000 lbs. Featuring a durable construction, this assembly is equipped with a 1-inch wire rope diameter and dimensions tailored for efficient performance. The incorporation of an electrical brake ensures safe operations, while the multiple mounting options provide versatility for various applications. Ideal for industrial settings where reliability and precision are paramount, this assembly guarantees optimal functionality and adherence to stringent quality standards.
Product Specifications
Specifications Capacity
25000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

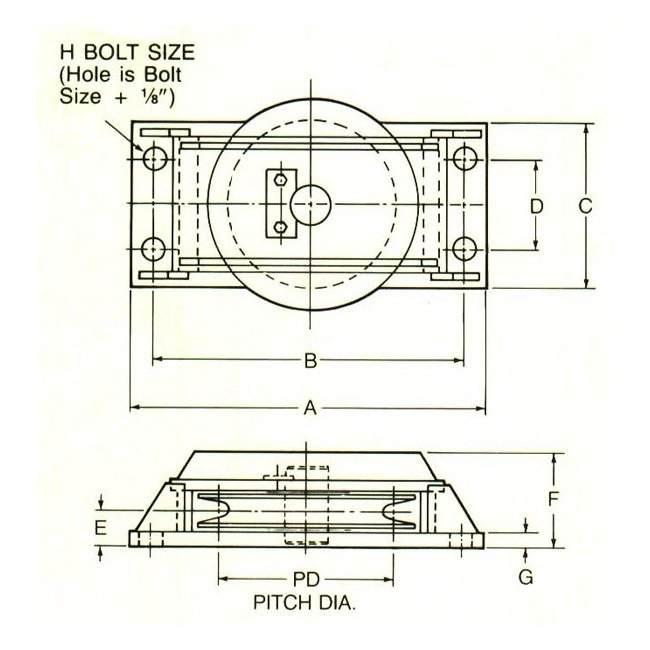

Specifications Dimension A
32 inches
Specifications Dimension B
28 inches
Specifications Dimension C
18 inches
Specifications Dimension D
10 inches
Specifications Dimension E
3 5/8 inches
Specifications Dimension F
10 inches
Specifications Dimension G
1 3/4 inches
Specifications Dimension H
1 3/4 inches
Specifications Model
SHS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
20 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
1 inches
