Heavy Duty Single Secondary Chassis Mount Power Transformer
Heavy Duty Single Secondary Chassis Mount Power Transformer
SKU:POW-41e8e1
High-performance Heavy Duty Chassis Mount Transformer with 60.0V secondary voltage, ideal for diverse applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy Duty Single Secondary Chassis Mount Power Transformer
$49.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Single Secondary Chassis Mount Power Transformer
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

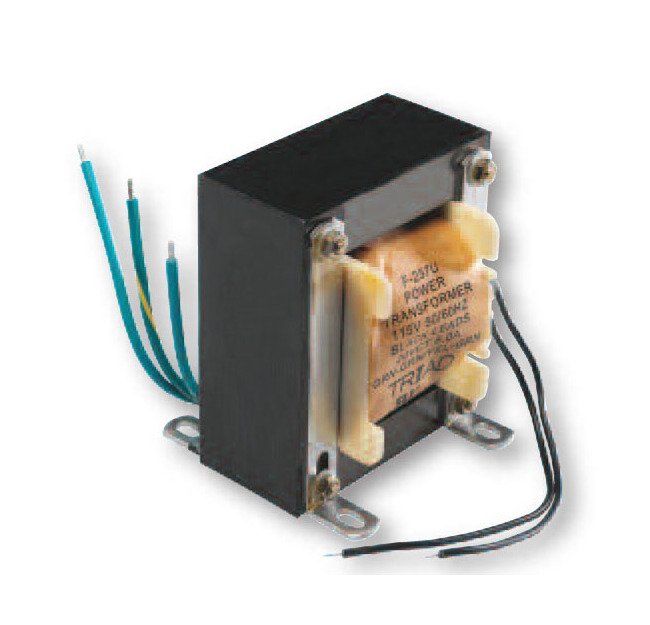

The Heavy Duty Single Secondary Chassis Mount Power Transformer by Triad offers exceptional performance and reliability for a wide range of applications. With a secondary voltage of 60.0V and a secondary current of 2.000A, this transformer is designed for efficiency and durability. The center type transformer contact ensures secure connections, while the primary voltage of 115V and primary frequency of 50Hz | 60Hz make it versatile for various setups. Measuring at 3 3/4" in height, 3 1/8" in width, and 3 1/8" in depth, this transformer is compact yet powerful. It meets industry standards for quality and performance, making it an ideal choice for both consumer and institutional buyers.

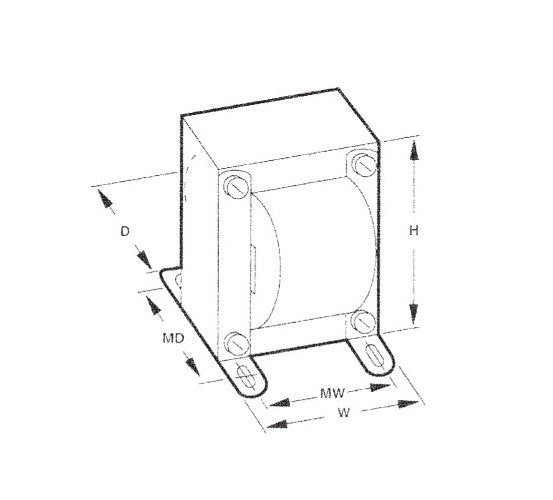

Product Specifications
Specifications Case Type
U
Specifications Connections
Leads
Specifications Depth D
3 1/8 in
Specifications Height H
3 3/4 in
Specifications Mounting Depth
2 5/8 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Width
2 1/2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Current
2.000 A
Specifications Secondary Rms Test Voltage
1,500 V
Specifications Secondary Voltage
60.0 V
Specifications Transformer Contact Type
Center Type
Specifications Weight
5.60 lb
Specifications Width W
3 1/8 in
