Heavy-Duty Snatch Block Assemblies 10000 lbs.
Heavy-Duty Snatch Block Assemblies 10000 lbs.
SKU:RIG-f2cbef
Robust Heavy-Duty Snatch Block Assemblies 10000 lbs. for reliable lifting and pulling operations.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Heavy-Duty Snatch Block Assemblies 10000 lbs.
$189.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Snatch Block Assemblies 10000 lbs.
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

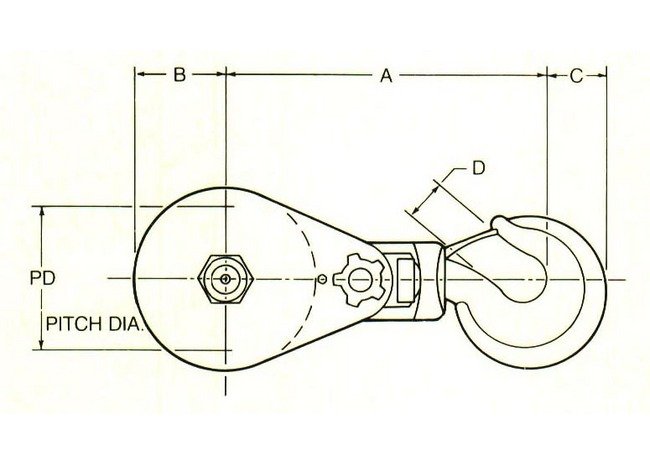

The Heavy-Duty Snatch Block Assemblies 10000 lbs. are robust and reliable tools designed for demanding lifting and pulling tasks. With a generous capacity of 10000 lbs. and a durable wire rope diameter of 5/8 inches, these assemblies are perfect for heavy-duty applications. Featuring dimensions of 16 1/4" (A) x 4 3/8" (B) x 3" (C) x 2 1/4" (D), they offer versatility in mounting options including horizontal base, inverted ceiling, and vertical configurations. These assemblies are equipped with electrical brake compatibility and various control options like the lever drum mounted at the winch and magnetic remote pushbutton for enhanced operational efficiency.
Product Specifications
Specifications Capacity
10000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Dimension A
16 1/4 inches
Specifications Dimension B
4 3/8 inches
Specifications Dimension C
3 inches
Specifications Dimension D
2 1/4 inches
Specifications Model
SB
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
10 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
5/8 inches
