Heavy-Duty Snatch Block Assemblies for Winches
Heavy-Duty Snatch Block Assemblies for Winches
SKU:RIG-16d81f
Heavy-Duty Snatch Block Assemblies for Winches, handles loads up to 6000 lbs, versatile controls & mounting options
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
per
Initiate Order
Heavy-Duty Snatch Block Assemblies for Winches
$139.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Snatch Block Assemblies for Winches
$139.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Heavy-Duty Snatch Block Assemblies are designed for handling robust loads up to 6000 lbs with a 1/2-inch wire rope diameter. Featuring a durable construction with a 6-inch pitch diameter, these assemblies excel in lifting and pulling applications. Equipped with lever drum controls mounted at the winch and magnetic remote pushbutton controls, these assemblies offer versatile operation. With mounting options for horizontal base, inverted ceiling, and vertical setups, our snatch block assemblies provide reliable performance for various winching needs. Compliant with federal/DoD procurement standards, these assemblies are ideal for government and institutional use.
Product Specifications
Specifications Capacity
6000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

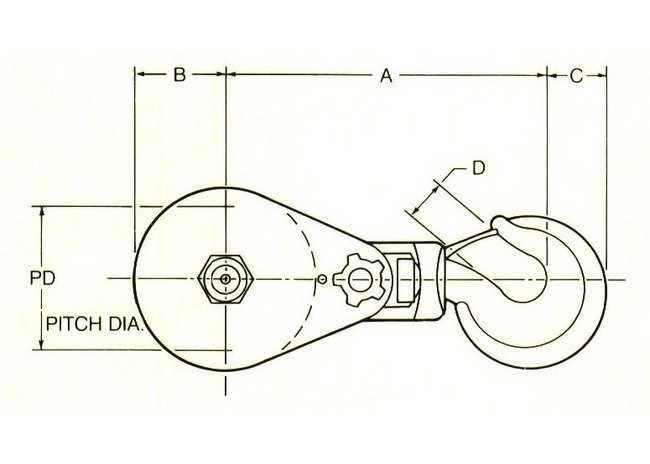

Specifications Dimension A
14 1/2 inches
Specifications Dimension B
4 inches
Specifications Dimension C
2 5/16 inches
Specifications Dimension D
1 7/8 inches
Specifications Model
SB
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
6 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
1/2 inches
