Heavy-Duty SPDT Momentary Toggle Switch - CVP Series
Heavy-Duty SPDT Momentary Toggle Switch - CVP Series
SKU:CVP-a0b5fd
Reliable Heavy-Duty SPDT Momentary Toggle Switch for demanding applications. Nickel-plated brass handle, silver contacts, 25A at 12V. CVP Series.
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
Heavy-Duty SPDT Momentary Toggle Switch - CVP Series
$19.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty SPDT Momentary Toggle Switch - CVP Series
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

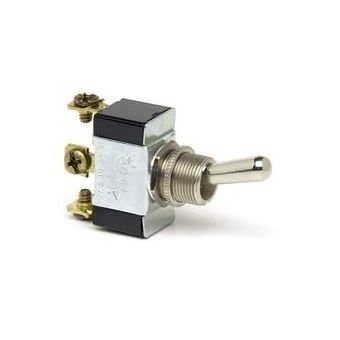

The Heavy-Duty Single Pole Double Throw (SPDT) Momentary Toggle Switch from the CVP Series is designed for rugged applications requiring reliability and durability. Featuring a nickel-plated brass handle, silver contacts, and a phenolic housing with plated steel cap, this switch offers exceptional performance. With a current rating of 25A at 12V, 15A at 24V, and 10A at 36V DC, it ensures efficient power control. The switch's standardized specifications and robust construction make it ideal for both consumer and institutional buyers seeking quality and compliance.
Product Specifications
Accessories Accessories

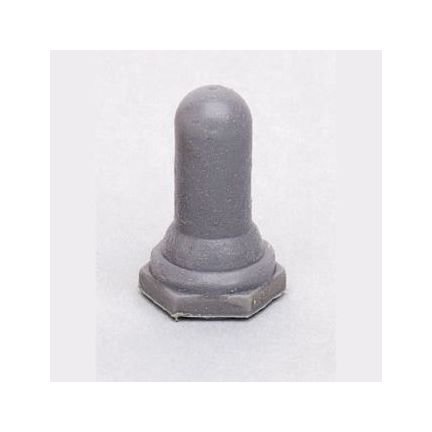

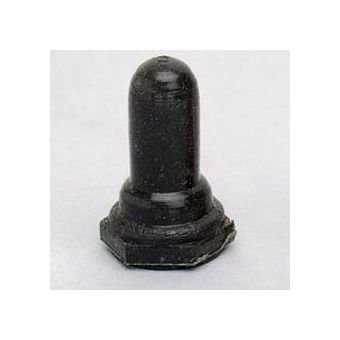

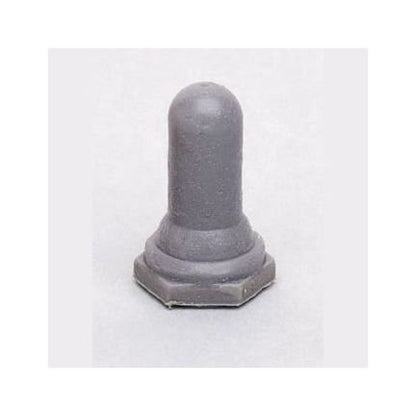

Item # - 81264Item Name - Accessories for Toggle SwitchesDescription - Countersunk faceplate switch guards. Surface mount switch guard. Lockout switch guard cover. Emergency marine cutoff lanyards.Housing - Silicone RubberItem # - 81264-01Item Name - Accessories for Toggle SwitchesDescription - Countersunk faceplate switch guards. Surface mount switch guard. Lockout switch guard cover. Emergency marine cutoff lanyards.Housing - Silicone Rubber
Specifications Cap Material
Plated Steel
Specifications Contact Material
Silver
Specifications Current At 12 Volt V Voltage
25 A
Specifications Current At 24 Volt V Voltage
15 A
Specifications Current At 36 Volt V Voltage
10 A
Specifications Direct Current Dc Voltage
12 V | 24 V | 36 V
Specifications Handle Length
11/16 in | 17.5 mm
Specifications Handle Material
Nickel Plated Brass
Specifications Handle Type
Standard
Specifications Housing
Phenolic
Specifications Mounting Hardware
Nickel-Plated Brass
Specifications Mounting Stem Length
15/32 in | 11.9 mm
Specifications Mounting Stem Material
Nickel-Plated Brass
Specifications Mounting Stem Thread Size
15/32-32 in
Specifications Number Of Terminals
6
Specifications Panel Thickness
9/32 in | 7.1 mm
Specifications Terminal Type
Screw
Specifications Type
Single Pole Double Throw (SPDT)
