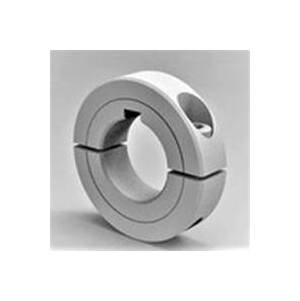

Heavy Duty Split Clamp Shaft Collar with Keyways, 1" Bore
Heavy Duty Split Clamp Shaft Collar with Keyways, 1" Bore
SKU:ROU-6a70f2
Precision machined Heavy Duty Shaft Collar for 1" shafts, offers superior holding power and protection against damage. RoHS and REACH compliant.
Regular price
$53.46
Regular price
Sale price
$53.46
Unit price
per
Initiate Order
Heavy Duty Split Clamp Shaft Collar with Keyways, 1" Bore
$53.46
Quantity: 1
Claim Your Seller Account
Heavy Duty Split Clamp Shaft Collar with Keyways, 1" Bore
$53.46
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Two-Piece Split Clamp-Type Shaft Collar with Keyways is designed for use on standard round shafts, hard or soft, as well as thin-wall tubes or split hubs. Featuring a precision machined stainless steel construction with a 1" bore and 1/4" keyway, this collar offers superior holding power and protection against shaft damage. Easily adjustable and non-marring, it comes in Heavy Duty style with a larger clamp screw for 2X holding power. Made in the USA, RoHS and REACH compliant.
Product Specifications
Dimensional Attributes Bore Size
1 in
Dimensional Attributes Keyway
1/4 in
Dimensional Attributes Outside Diameter
2.250 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Size
5/16-24 x 1
Dimensional Attributes Width
0.625 in
Specifications Alloy
1215
Specifications Approximate Weight
0.47 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications List Price
53.46 USD
Specifications Material
Stainless Steel
Specifications Part Number
2S100HDK
Specifications Reach Compliant
Yes
Specifications Rohs Compliant
Yes
Specifications Screw Material
18-8 Stainless Steel
Specifications Series
Signature
Specifications Type
Heavy Duty
Specifications Upc Code
662786044304
