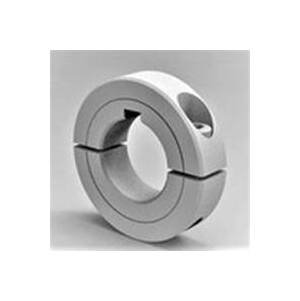

Heavy Duty Split Shaft Collar with Keyway, 2-1/2in Bore, Stainless Steel
Heavy Duty Split Shaft Collar with Keyway, 2-1/2in Bore, Stainless Steel
SKU:ROU-309d51
Precision machined Stainless Steel Split Shaft Collar with Keyway for superior holding power on round shafts. Easily adjustable for precise clamping.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Heavy Duty Split Shaft Collar with Keyway, 2-1/2in Bore, Stainless Steel
$24.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Split Shaft Collar with Keyway, 2-1/2in Bore, Stainless Steel
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Two-Piece Split Clamp-Type Shaft Collar with Keyway is a versatile solution for standard round shafts, hard or soft, and thin-wall tubes. Precision machined from Stainless Steel, this Heavy Duty collar offers superior holding power over set-screw types. Its non-marring design ensures shaft protection, while the easy-to-adjust clamp screw provides high clamping force. Available in Low Profile and Heavy Duty styles, this collar can be disassembled and repositioned anywhere on the shaft, offering flexibility and reliability.
Product Specifications
Dimensional Attributes Bore Size
2-1/2 in
Dimensional Attributes Keyway
5/8 in
Dimensional Attributes Outside Diameter
4.250 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Size
1/2-20 x 1-1/4
Dimensional Attributes Width
1.000 in
Specifications Alloy
C1026
Specifications Approximate Weight
2.34 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications Material
Stainless Steel
Specifications Part Number
2S208HDK
Specifications Reach Compliant
Yes
Specifications Rohs Compliant
Yes
Specifications Screw Material
18-8 Stainless Steel
Specifications Series
Signature
Specifications Type
Heavy Duty
Specifications Upc Code
662786044366
