Heavy Duty Split Shaft Collars with Keyways

Name: Heavy Duty Split Shaft Collars with Keyways
Brand: Stafford Manufacturing Corp.
SKU: ROU-391a1f
Price: 29.28 USD
Availability: OutOfStock

SKU:ROU-391a1f

Precision machined Heavy Duty Split Shaft Collars with Keyways for secure and flexible shaft positioning.

$29.28

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

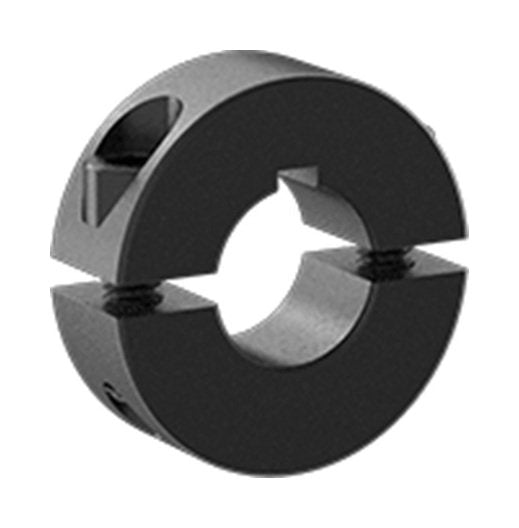

The Two-Piece Split Clamp-Type Shaft Collars with Keyways are precision machined from high-quality steel alloy, featuring a black oxide finish for durability. These collars offer superior holding power over standard set-screw types and can be easily adjusted and disassembled for flexible positioning on round shafts or split hubs. With a smooth bore design to protect shafts from damage, these collars are available in Low Profile or Heavy Duty styles, designed with non-marring properties and high clamping force. The Heavy Duty variant boasts a larger clamp screw and OD for double the holding power, providing reliability and strength in various applications.

Product Specifications

Dimensional Attributes Bore Size

1-1/8 in

Dimensional Attributes Keyway

1/4 in

Dimensional Attributes Outside Diameter

2.375 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Size

5/16-24 x 1

Dimensional Attributes Width

0.625 in

Specifications Alloy

1215

Specifications Approximate Weight

0.5 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications List Price

29.28 USD

Specifications Material

Steel

Specifications Part Number

2L102HDK

Specifications Reach Compliant

Yes

Specifications Rohs Compliant

Yes

Specifications Screw Material

Alloy Steel

Specifications Series

Signature

Specifications Type

Heavy Duty

Specifications Upc Code

662786044076

Heavy Duty Split Shaft Collars with Keyways
