Heavy-Duty SPST Push-Button Switch with Screw-On Cap
Heavy-Duty SPST Push-Button Switch with Screw-On Cap
SKU:CVP-2c48c6
Powerful SPST Switch for 36V DC applications. Sturdy, reliable, and spring-loaded return to Off position.
Regular price
$17.99
Regular price
Sale price
$17.99
Unit price
per
Initiate Order
Heavy-Duty SPST Push-Button Switch with Screw-On Cap
$17.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty SPST Push-Button Switch with Screw-On Cap
$17.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

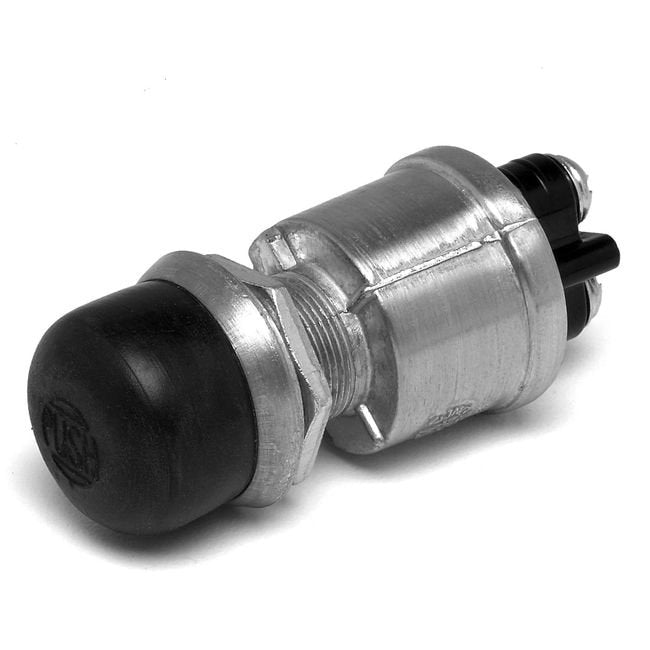

The Heavy-Duty SPST Push-Button Switch with a Screw-On Cap is designed for applications up to 36V DC, featuring a Normally Off - On function with a spring return to Off when the button is released. With silver contacts, chrome-plated button and face nut, it offers high durability and reliable performance. This switch can handle up to 35A at 12V and 20A at 24V DC, making it ideal for heavy-duty applications. The mounting stem with a 5/8-32 thread ensures secure installation, and the black rubber protective cap adds an extra layer of safety.
Product Specifications
Specifications Actuator Material
Steel
Specifications Actuator Type
Plunger
Specifications Contacts
Normally Open (NO)
Specifications Contact Material
Silver
Specifications Current
35 A
Specifications Direct Current Dc Voltage
12 V
Specifications Mounting Diameter
28.44 mm
Specifications Mounting Stem Thread Size
5/8-32 in
Specifications Plunger Length
21/32 in
Specifications Type
Single Pole Single Throw (SPST)
