Heavy-Duty SPST Push-Button Switch with Seal & Screw Cap
Heavy-Duty SPST Push-Button Switch with Seal & Screw Cap
SKU:CVP-d2319f
Heavy-Duty SPST Push-Button Switch for 36V DC applications. Silver contacts, chrome-plated design, with seal & cap.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Heavy-Duty SPST Push-Button Switch with Seal & Screw Cap
$24.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty SPST Push-Button Switch with Seal & Screw Cap
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

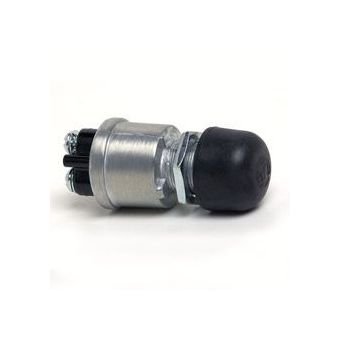

The Single Pole Single Throw (SPST) Heavy-Duty Push-Button Switch from the CVP Pushbutton Push-Pull Switches line is designed for applications up to 36 V DC. It features a Normally Off function that switches to On when the button is depressed, with a spring return to Off. This reliable switch boasts silver contacts, a chrome-plated button, and face nut, enhancing durability. Additionally, it includes an O-ring seal in the mounting stem, a snap-on black rubber protective cap (407-03), and a black plastic button for added protection and longevity.
Product Specifications
Specifications Actuator Material
Steel
Specifications Actuator Type
Plunger
Specifications Contacts
Normally Open (NO)
Specifications Contact Material
Silver
Specifications Current
35 A
Specifications Direct Current Dc Voltage
12 V
Specifications Mounting Stem Thread Size
5/8-32 in
Specifications Type
Single Pole Single Throw (SPST)
