Heavy Duty Square Bar Cable Trolley
Heavy Duty Square Bar Cable Trolley
SKU:CRA-938ce8
Durable Heavy Duty Square Bar Cable Trolley for reliable indoor & outdoor flat cable support. Load capacity: 150 lb, speed: 250 fpm.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Heavy Duty Square Bar Cable Trolley
$89.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Square Bar Cable Trolley
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Square Bar Cable Trolley is a robust solution designed for industrial applications, featuring a zinc-plated steel body construction and aluminum cable saddle. With a load capacity of 150 lb and a smooth operation at speeds up to 250 fpm, this trolley ensures reliable performance in demanding environments. Equipped with neoprene rubber cable pads and sealed ball bearings on its steel wheels, it provides secure support for round cables. The trolley's dimensions, including a 4-inch saddle diameter and an 8-inch saddle width, make it suitable for various cable loop configurations. Whether used indoors or outdoors, this trolley offers durability and efficiency, meeting the needs of heavy-duty square festoon systems.
Product Specifications
Specifications Body Material
Zinc Plated Steel
Specifications Cable Pad Material
Neoprene rubber

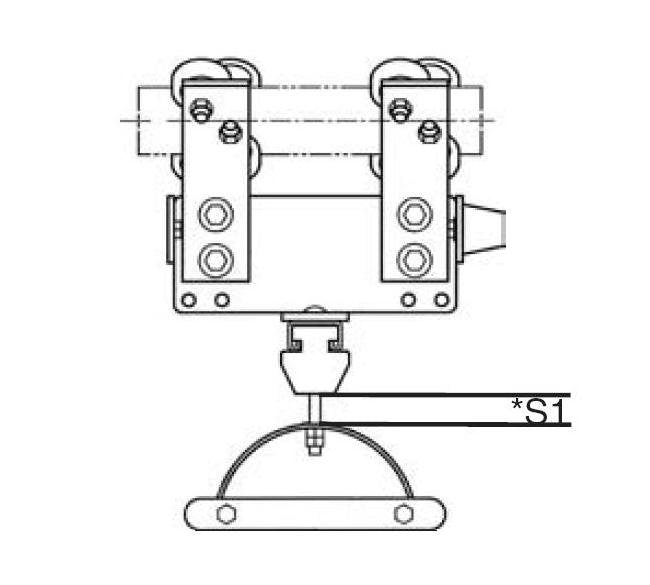

Specifications Cable Window Height S1
0.4 in
Specifications Cable Window Width
6.7 in
Specifications Hardware Material
Zinc Plated Steel
Specifications Load
150 lb
Specifications Main Rollers Diameter
1.77 in
Specifications No Required Per System
One per cable loop.
Specifications Saddle Diameter
4 in
Specifications Saddle Material
Aluminum
Specifications Saddle Width
8 in
Specifications Speed
250 fpm
Specifications Unit Length
8 5/8 in
Specifications Used For
Round Cable
Specifications Weight
12.0 lb
