Heavy Duty Square Bar Cable Trolley
Heavy Duty Square Bar Cable Trolley
SKU:CRA-eb22c4
Durable Heavy Duty Square Bar Cable Trolley for efficient flat cable management in indoor and outdoor settings.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Heavy Duty Square Bar Cable Trolley
$129.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Square Bar Cable Trolley
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Square Bar Cable Trolley is a robust solution designed for both indoor and outdoor applications of flat cables. Constructed with Zinc Plated Steel for the body and Aluminum for the saddle, this trolley ensures durability and reliability. With features like steel wheels, sealed ball bearings, neoprene rubber cable pads, and a load capacity of 150 lb, it offers smooth and efficient operation. The trolley's specifications meet the highest standards for cable management, ensuring safety and longevity in crane control and electrification systems.
Product Specifications
Specifications Body Material
Zinc Plated Steel
Specifications Cable Pad Material
Neoprene rubber

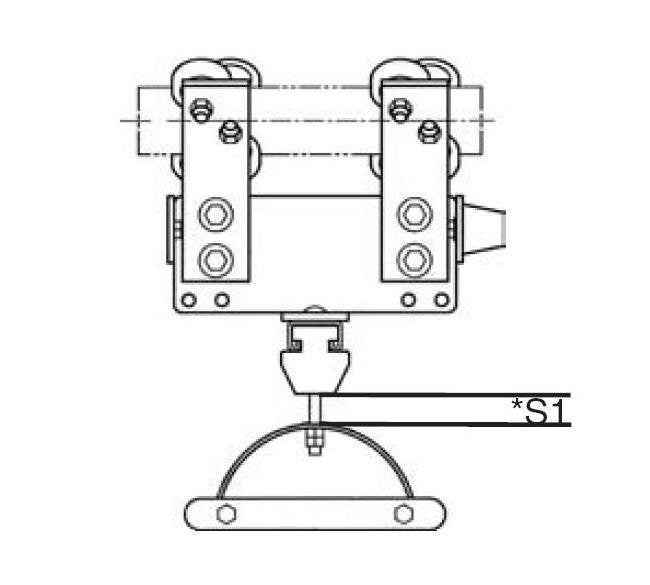

Specifications Cable Window Height S1
0.8 in
Specifications Cable Window Width
6.7 in
Specifications Hardware Material
Zinc Plated Steel
Specifications Load
150 lb
Specifications Main Rollers Diameter
1.77 in
Specifications No Required Per System
One per cable loop.
Specifications Saddle Diameter
8 in
Specifications Saddle Material
Aluminum
Specifications Saddle Width
8 in
Specifications Speed
250 fpm
Specifications Unit Length
12 5/8 in
Specifications Used For
Round Cable
Specifications Weight
12.0 lb
