Heavy Duty Square Bar Tow Trolley
Heavy Duty Square Bar Tow Trolley
SKU:CRA-10295c
Rugged Heavy Duty Square Bar Trolley for secure flat cable towing in heavy-duty applications. Suitable for indoor and outdoor use.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Heavy Duty Square Bar Tow Trolley
$199.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Square Bar Tow Trolley
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Square Bar Tow Trolley is a rugged solution designed for both indoor and outdoor applications, featuring a robust all-steel body construction with a durable aluminum cable saddle. Ideal for flat cable systems, this trolley ensures reliable performance thanks to its zinc-plated steel components, including standard wheels with sealed ball bearings. With a maximum load capacity of 150 lb and a speed of 250 fpm, this trolley guarantees efficient and safe towing. The trolley body includes running gear for enhanced functionality and ease of use, making it a versatile choice for heavy-duty square festoon systems.
Product Specifications
Specifications Body Material
Zinc Plated Steel
Specifications Cable Pad Material
Neoprene rubber

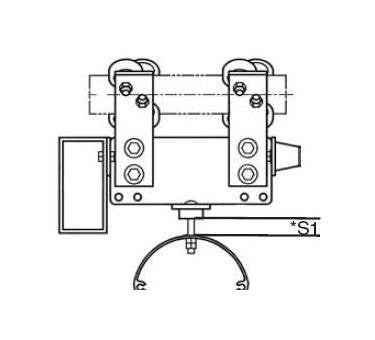

Specifications Cable Window Height S1
2.0 in
Specifications Cable Window Width
3.9 in
Specifications Hardware Material
Zinc Plated Steel
Specifications Load
150 lb
Specifications Main Rollers Diameter
1.77 in
Specifications No Required Per System
One - tow trolley is supplied with towing box for tow bar.
Specifications Saddle Diameter
8 in
Specifications Saddle Material
Aluminum
Specifications Saddle Width
5 1/4 in
Specifications Speed
250 fpm
Specifications Unit Length
11 1/8 in
Specifications Used For
Flat Cable
Specifications Weight
13.5 lb
