Heavy Duty Square Bar Tow Trolley for Festoon Systems
Heavy Duty Square Bar Tow Trolley for Festoon Systems
SKU:CRA-8dcedd
Heavy Duty Square Bar Tow Trolley for crane control systems, zinc-plated steel body, aluminum saddle, 150 lb load capacity, 250 fpm speed rating.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Heavy Duty Square Bar Tow Trolley for Festoon Systems
$129.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Square Bar Tow Trolley for Festoon Systems
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Square Bar Tow Trolley is a robust solution designed for crane control systems, featuring a sturdy zinc-plated steel body and aluminum cable saddle for durability. With a load capacity of 150 lb and a speed rating of 250 fpm, this trolley is ideal for both indoor and outdoor applications. The trolley's main rollers have a diameter of 1.77 inches, ensuring smooth operation, while the neoprene rubber cable pad provides secure cable management. Compliant with industry standards, this trolley includes all necessary hardware and a towing box for easy installation.
Product Specifications
Specifications Body Material
Zinc Plated Steel
Specifications Cable Pad Material
Neoprene rubber

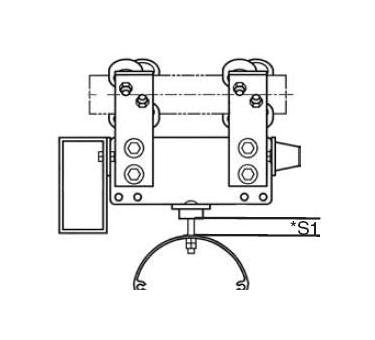

Specifications Cable Window Height S1
2.0 in
Specifications Cable Window Width
3.9 in
Specifications Hardware Material
Zinc Plated Steel
Specifications Load
150 lb
Specifications Main Rollers Diameter
1.77 in
Specifications No Required Per System
One - tow trolley is supplied with towing box for tow bar.
Specifications Saddle Diameter
4 in
Specifications Saddle Material
Aluminum
Specifications Saddle Width
5 1/4 in
Specifications Speed
250 fpm
Specifications Unit Length
11 1/8 in
Specifications Used For
Flat Cable
Specifications Weight
13.5 lb
