Heavy Duty Square Bar Trolley for Festoon Systems
Heavy Duty Square Bar Trolley for Festoon Systems
SKU:CRA-ead71d
Durable Heavy Duty Square Bar Trolley for Festoon Systems with Zinc Plated Steel body & Aluminum saddle, ideal for indoor/outdoor flat cable applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Heavy Duty Square Bar Trolley for Festoon Systems
$249.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Square Bar Trolley for Festoon Systems
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Square Bar Trolley for Festoon Systems is expertly designed for durability and efficiency. Crafted with Zinc Plated Steel body and Aluminum saddle, this trolley is engineered for both indoor and outdoor use with flat cables. Equipped with sturdy steel wheels featuring sealed ball bearings, it ensures smooth and reliable operation. With a weight capacity of 150 lb and a speed of 250 fpm, this trolley offers exceptional performance for heavy-duty applications. The inclusion of a towing box for the tow bar enhances ease of use, making it a versatile solution for various environments.
Product Specifications
Specifications Body Material
Zinc Plated Steel
Specifications Cable Pad Material
Neoprene rubber

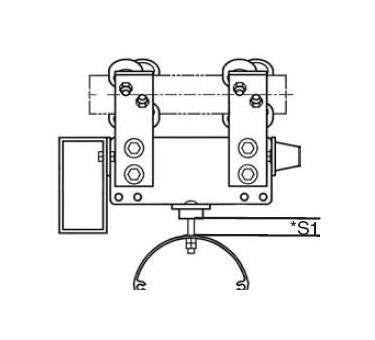

Specifications Cable Window Height S1
2.0 in
Specifications Cable Window Width
6.7 in
Specifications Hardware Material
Zinc Plated Steel
Specifications Load
150 lb
Specifications Main Rollers Diameter
1.77 in
Specifications No Required Per System
One - tow trolley is supplied with towing box for tow bar.
Specifications Saddle Diameter
8 in
Specifications Saddle Material
Aluminum
Specifications Saddle Width
8 in
Specifications Speed
250 fpm
Specifications Unit Length
15 1/8 in
Specifications Used For
Flat Cable
Specifications Weight
13.5 lb
