Heavy Duty Square Cable Trolley System
Heavy Duty Square Cable Trolley System
SKU:CRA-95795d
High-performance stainless steel cable trolley for heavy-duty square festoon systems. Durable, efficient, and suitable for indoor and outdoor applications.
Regular price
$179.99
Regular price
Sale price
$179.99
Unit price
per
Initiate Order
Heavy Duty Square Cable Trolley System
$179.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Square Cable Trolley System
$179.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Square Cable Trolley System is a top-of-the-line solution for crane control and electrification needs in industrial settings. Constructed with stainless steel body and aluminum cable saddle, this trolley is designed for round cables, ensuring durability and reliability in both indoor and outdoor applications. With a weight capacity of 150 lb and a speed rating of 250 fpm, this trolley provides smooth operation and efficient cable management. The trolley features steel wheels with sealed ball bearings, ensuring stability and longevity. The neoprene rubber cable pad and stainless steel hardware enhance performance and safety. Each system requires one trolley per cable loop, making it a cost-effective and essential component of any heavy-duty festoon system.
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Cable Pad Material
Neoprene rubber

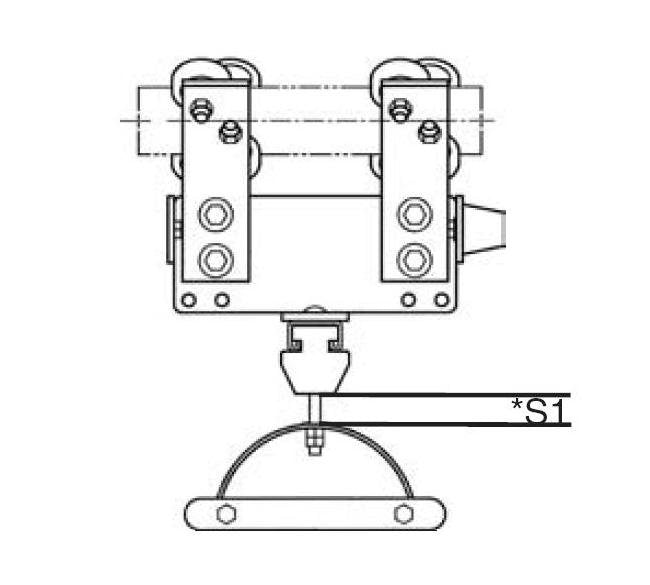

Specifications Cable Window Height S1
0.6 in
Specifications Cable Window Width
3.9 in
Specifications Hardware Material
Stainless Steel
Specifications Load
150 lb
Specifications Main Rollers Diameter
1.77 in
Specifications No Required Per System
One per cable loop.
Specifications Saddle Diameter
6 in
Specifications Saddle Material
Aluminum
Specifications Saddle Width
5 1/4 in
Specifications Speed
250 fpm
Specifications Unit Length
10 1/8 in
Specifications Used For
Round Cable
Specifications Weight
12.0 lb
