Heavy-Duty Square Corner Hinge with 270° Swing
Heavy-Duty Square Corner Hinge with 270° Swing
SKU:HIN-1e0f1e
Enhanced Series 7014 Square Corner Hinge for optimal strength and 270° swing. Includes powder-coated ductile iron bracket and zinc-plated strap. Supports up to 5 lbs.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
Heavy-Duty Square Corner Hinge with 270° Swing
$35.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Square Corner Hinge with 270° Swing
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

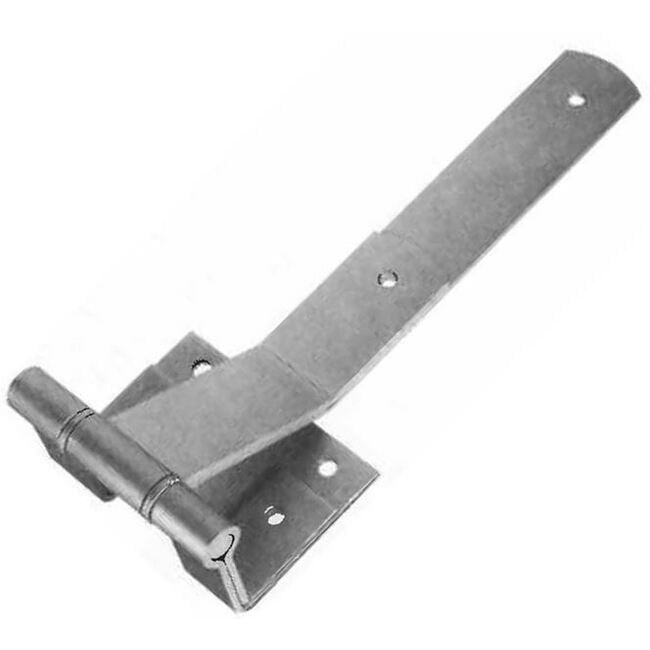

The Series 7014 Square Corner Hinge is meticulously crafted for optimal performance in square corner applications. Constructed with a steel laminated strap for enhanced strength, this hinge allows doors to swing a full 270 degrees, enabling complete access. The powder-coated ductile iron bracket measures 3" wide by 5-1/4" high, while the zinc-plated 8 ga. strap is 1-1/2" wide and 25-1/4" long. With a 1/2" diameter pin that is 2-7/8" long, this hinge is sturdy and reliable, weighing 5 lbs. Ensure safety with the Prop 65 Warning included.
Product Specifications
Specifications Bracket Length
5 1/4 in
Specifications Bracket Width
3 in
Specifications Country Of Origin
US
Specifications Finish
Powder coated ductile iron
Specifications Material
Steel
Specifications Pin
1/2" Diameter x 2 7/8" long
Specifications Product Guides
Hinge's Guides
Specifications Strap Length
25 1/4 in
Specifications Strap Size
Zinc plated 8 ga. 1 1/2"
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
5 lbs
