Heavy Duty Square Festoon System End Clamp

Name: Heavy Duty Square Festoon System End Clamp
Brand: Clutch Engineering
SKU: CRA-ba9cf8
Price: 49.99 USD
Availability: OutOfStock

SKU:CRA-ba9cf8

Durable stainless steel end clamp for heavy-duty square festoon systems. Ideal for flat cables, indoor/outdoor use. Supports up to 150 lbs.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy Duty Square Festoon System End Clamp is a durable and reliable solution designed for crane control and electrification applications. Constructed with high-quality stainless steel and aluminum materials, this end clamp is ideal for both indoor and outdoor use with flat cables. It features a 4-inch diameter aluminum cable saddle with a neoprene rubber cable pad, ensuring secure cable management. With a weight capacity of 150 lbs and a speed rating of 250 fpm, this end clamp provides efficient and safe cable support. The trolley body includes running gear for smooth operation, making it a versatile choice for heavy-duty square festoon systems.

Product Specifications

Specifications Body Material

Stainless Steel

Specifications Cable Pad Material

Neoprene rubber

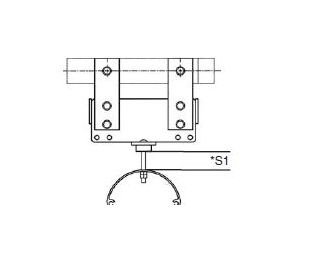

Specifications Cable Window Height S1

2.0 in

Specifications Cable Window Width

3.9 in

Specifications Hardware Material

Stainless Steel

Specifications Load

150 lb

Specifications No Required Per System

One - plus appropriate mounting clamp as determined by factory

Specifications Saddle Diameter

4 in

Specifications Saddle Material

Aluminum

Specifications Saddle Width

5 1/4 in

Specifications Speed

250 fpm

Specifications Unit Length

7 3/8 in

Specifications Used For

Flat Cable

Specifications Weight

8.5 lb

Heavy Duty Square Festoon System End Clamp
