Heavy Duty Square Festoon System End Clamp
Heavy Duty Square Festoon System End Clamp
SKU:CRA-ada3ab
Durable zinc-plated steel end clamp for heavy duty square festoon systems, ensures secure flat cable management. Supports 150 lb load at 250 fpm.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy Duty Square Festoon System End Clamp
$49.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Square Festoon System End Clamp
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Square Festoon System End Clamp is a vital component designed for industrial use, featuring a robust zinc-plated steel body construction with an aluminum cable saddle for durability in both indoor and outdoor settings. This clamp is optimized for flat cables, equipped with neoprene rubber cable pads, and can withstand a maximum load of 150 lbs at a speed of 250 fpm. With a saddle diameter of 8 inches and a width of 8 inches, this end clamp ensures secure cable management and reliable performance. The inclusion of sealed ball bearing steel wheels and a cable window measuring 6.7 inches in width and 2.0 inches in height enhances operational efficiency and smooth cable movement.
Product Specifications
Specifications Body Material
Zinc Plated Steel
Specifications Cable Pad Material
Neoprene rubber

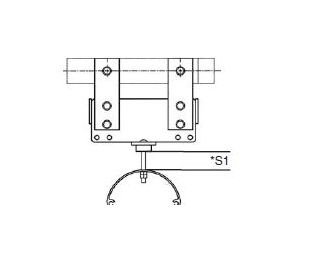

Specifications Cable Window Height S1
2.0 in
Specifications Cable Window Width
6.7 in
Specifications Hardware Material
Zinc Plated Steel
Specifications Load
150 lb
Specifications No Required Per System
One - plus appropriate mounting clamp as determined by factory
Specifications Saddle Diameter
8 in
Specifications Saddle Material
Aluminum
Specifications Saddle Width
8 in
Specifications Speed
250 fpm
Specifications Unit Length
11 3/8 in
Specifications Used For
Flat Cable
Specifications Weight
8.5 lb
