Heavy Duty Square Festoon System Tow Trolley
Heavy Duty Square Festoon System Tow Trolley
SKU:CRA-3873c0
Durable Heavy Duty Tow Trolley for Square Festoon Systems with 150 lbs load capacity & 250 fpm speed, ideal for indoor & outdoor flat cable applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Heavy Duty Square Festoon System Tow Trolley
$129.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Square Festoon System Tow Trolley
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Square Festoon System Tow Trolley is designed for both indoor and outdoor applications, featuring a durable all-steel body construction with a corrosion-resistant zinc-plated steel body and aluminum cable saddle. With a load capacity of 150 lbs and a speed rating of 250 fpm, this trolley ensures efficient and reliable cable management. The trolley's neoprene rubber cable pad and sealed ball bearing steel wheels provide smooth operation while meeting institutional procurement standards for quality and durability.
Product Specifications
Specifications Body Material
Zinc Plated Steel
Specifications Cable Pad Material
Neoprene rubber

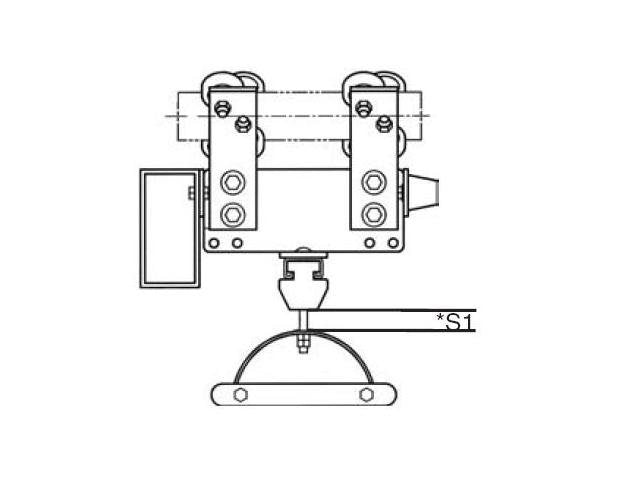

Specifications Cable Window Height S1
0.6 in
Specifications Cable Window Width
3.9 in
Specifications Hardware Material
Zinc Plated Steel
Specifications Load
150 lb
Specifications Main Rollers Diameter
1.77 in
Specifications No Required Per System
One - tow trolley is supplied with towing box for tow bar.
Specifications Saddle Diameter
6 in
Specifications Saddle Material
Aluminum
Specifications Saddle Width
5 1/4 in
Specifications Speed
250 fpm
Specifications Unit Length
12 5/8 in
Specifications Used For
Round Cable
Specifications Weight
14.0 lb
