Heavy Duty Square Festoon System Tow Trolley
Heavy Duty Square Festoon System Tow Trolley
SKU:CRA-2797bb
Durable stainless steel Tow Trolley for Heavy Duty Square Festoon Systems, ideal for flat cables indoors and outdoors.
Regular price
$179.99
Regular price
Sale price
$179.99
Unit price
per
Initiate Order
Heavy Duty Square Festoon System Tow Trolley
$179.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Square Festoon System Tow Trolley
$179.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Square Festoon System Tow Trolley is expertly crafted with a stainless steel body and aluminum cable saddle, perfect for both indoor and outdoor applications. Featuring durable steel wheels with sealed ball bearings, this trolley ensures smooth and reliable operation for flat cables. With a maximum load capacity of 150 lb and a speed of 250 fpm, it offers exceptional performance in crane control systems.
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Cable Pad Material
Neoprene rubber

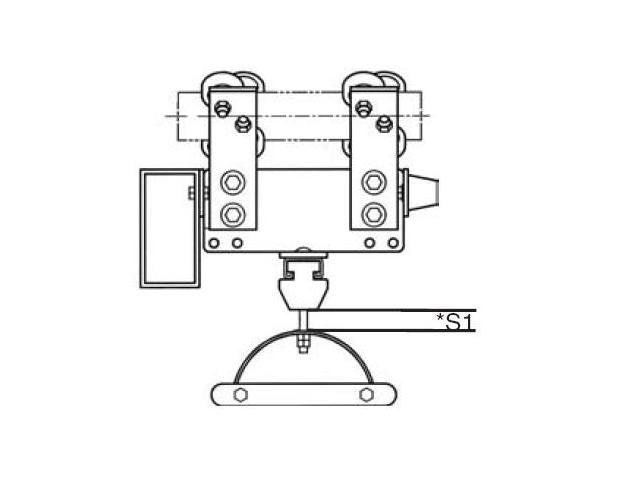

Specifications Cable Window Height S1
0.8 in
Specifications Cable Window Width
3.9 in
Specifications Hardware Material
Stainless Steel
Specifications Load
150 lb
Specifications Main Rollers Diameter
1.77 in
Specifications No Required Per System
One - tow trolley is supplied with towing box for tow bar.
Specifications Saddle Diameter
8 in
Specifications Saddle Material
Aluminum
Specifications Saddle Width
5 1/4 in
Specifications Speed
250 fpm
Specifications Unit Length
11 1/8 in
Specifications Used For
Round Cable
Specifications Weight
14.0 lb
