Heavy Duty Square Festoon Systems End Clamp
Heavy Duty Square Festoon Systems End Clamp
SKU:CRA-bd9fb5
Durable end clamp for heavy-duty square festoon systems, supports up to 150 lb load at 250 fpm speed. Zinc-plated steel construction with aluminum saddle for reliable cable management.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy Duty Square Festoon Systems End Clamp
$49.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Square Festoon Systems End Clamp
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Square Festoon Systems End Clamp is a durable and reliable solution designed for use with round cables in both indoor and outdoor settings. Constructed with zinc-plated steel for superior strength and aluminum saddle for enhanced cable support, this clamp is ideal for heavy-duty applications. It features neoprene rubber cable pads for added protection and can support a load of up to 150 lb at speeds of up to 250 fpm. With a saddle diameter of 6 inches and a weight of 9.0 lb, this end clamp ensures secure cable management and smooth operation, meeting the demanding requirements of crane control and electrification systems.
Product Specifications
Specifications Body Material
Zinc Plated Steel
Specifications Cable Pad Material
Neoprene rubber

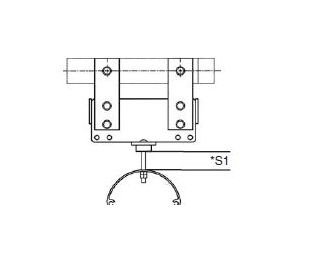

Specifications Cable Window Height S1
0.6 in
Specifications Cable Window Width
3.9 in
Specifications Hardware Material
Zinc Plated Steel
Specifications Load
150 lb
Specifications No Required Per System
One - plus appropriate mounting clamp as determined by factory
Specifications Saddle Diameter
6 in
Specifications Saddle Material
Aluminum
Specifications Saddle Width
5 1/4 in
Specifications Speed
250 fpm
Specifications Unit Length
8 7/8 in
Specifications Used For
Round Cable
Specifications Weight
9.0 lb
