Heavy Duty Square Festoon Systems Tow Trolley
Heavy Duty Square Festoon Systems Tow Trolley
SKU:CRA-b63287
Durable Heavy Duty Square Festoon Systems Tow Trolley for flat cables, zinc-plated steel body, aluminum saddle, 150 lb load capacity
Regular price
$169.99
Regular price
Sale price
$169.99
Unit price
per
Initiate Order
Heavy Duty Square Festoon Systems Tow Trolley
$169.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Square Festoon Systems Tow Trolley
$169.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Square Festoon Systems Tow Trolley is expertly crafted with a zinc-plated steel body and an aluminum cable saddle, ensuring durability for both indoor and outdoor applications. Featuring main rollers with a diameter of 1.77 inches and a smooth neoprene rubber cable pad, this trolley can effortlessly handle flat cables. With a weight capacity of 150 lbs and a speed of 250 fpm, it provides reliable and efficient operation. The trolley is designed to meet institutional procurement requirements, offering a dependable solution for crane control and electrification needs.
Product Specifications
Specifications Body Material
Zinc Plated Steel
Specifications Cable Pad Material
Neoprene rubber

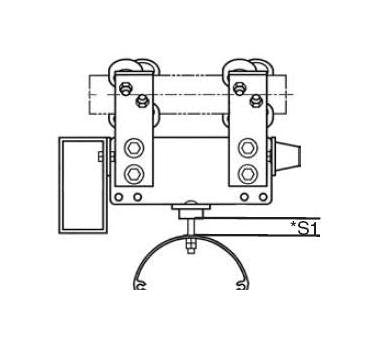

Specifications Cable Window Height S1
2.0 in
Specifications Cable Window Width
6.7 in
Specifications Hardware Material
Zinc Plated Steel
Specifications Load
150 lb
Specifications Main Rollers Diameter
1.77 in
Specifications No Required Per System
One - tow trolley is supplied with towing box for tow bar.
Specifications Saddle Diameter
4 in
Specifications Saddle Material
Aluminum
Specifications Saddle Width
8 in
Specifications Speed
250 fpm
Specifications Unit Length
11 1/8 in
Specifications Used For
Flat Cable
Specifications Weight
13.5 lb
