Heavy Duty Square Festoon Systems Tow Trolley
Heavy Duty Square Festoon Systems Tow Trolley
SKU:CRA-1715a3
Durable zinc-plated steel tow trolley for flat cable applications, ensuring reliable crane control & electrification systems
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Heavy Duty Square Festoon Systems Tow Trolley
$189.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Square Festoon Systems Tow Trolley
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Square Festoon Systems Tow Trolley is built for durability and versatility, featuring a zinc-plated steel body construction with aluminum cable saddle, suitable for indoor and outdoor flat cable applications. With standard steel wheels, sealed ball bearings, and neoprene rubber cable pad, this tow trolley ensures smooth operation. Designed with precise specifications including a 150 lb load capacity, 250 fpm speed, and compliance with industry standards, it guarantees reliable performance in crane control & electrification systems.
Product Specifications
Specifications Body Material
Zinc Plated Steel
Specifications Cable Pad Material
Neoprene rubber

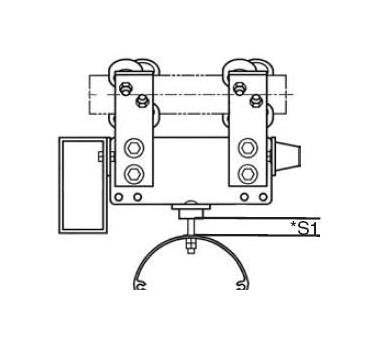

Specifications Cable Window Height S1
2.0 in
Specifications Cable Window Width
3.9 in
Specifications Hardware Material
Zinc Plated Steel
Specifications Load
150 lb
Specifications Main Rollers Diameter
1.77 in
Specifications No Required Per System
One - tow trolley is supplied with towing box for tow bar.
Specifications Saddle Diameter
6 in
Specifications Saddle Material
Aluminum
Specifications Saddle Width
5 1/4 in
Specifications Speed
250 fpm
Specifications Unit Length
12 5/8 in
Specifications Used For
Flat Cable
Specifications Weight
13.5 lb
