Heavy Duty Square Festoon Tow Trolley
Heavy Duty Square Festoon Tow Trolley
SKU:CRA-973f83
Durable Heavy Duty Square Festoon Tow Trolley for flat cable applications, with 150 lb load capacity and stainless steel construction.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Heavy Duty Square Festoon Tow Trolley
$129.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Square Festoon Tow Trolley
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Square Festoon Tow Trolley is engineered for robust performance in both indoor and outdoor settings. Constructed with a sturdy all-steel body and aluminum cable saddle, this trolley is designed for flat cable applications, ensuring reliable transportation with a maximum load capacity of 150 lb. Featuring stainless steel components throughout, including the main rollers and hardware, this trolley offers durability and resistance to corrosion. The neoprene rubber cable pad enhances grip and protection, while the trolley's smooth operation at 250 fpm speed guarantees efficient material handling. With a compliant design fitting one tow trolley per system, this product delivers optimal functionality for heavy-duty square festoon systems.
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Cable Pad Material
Neoprene rubber

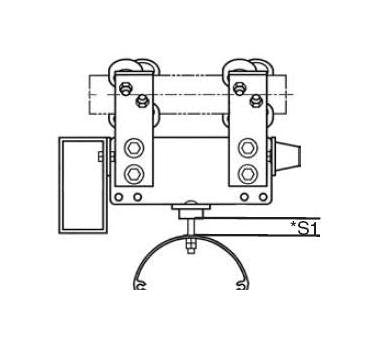

Specifications Cable Window Height S1
2.0 in
Specifications Cable Window Width
3.9 in
Specifications Hardware Material
Stainless Steel
Specifications Load
150 lb
Specifications Main Rollers Diameter
1.77 in
Specifications No Required Per System
One - tow trolley is supplied with towing box for tow bar.
Specifications Saddle Diameter
4 in
Specifications Saddle Material
Aluminum
Specifications Saddle Width
5 1/4 in
Specifications Speed
250 fpm
Specifications Unit Length
11 1/8 in
Specifications Used For
Flat Cable
Specifications Weight
13.5 lb
