Heavy Duty Square Festoon Tow Trolley
Heavy Duty Square Festoon Tow Trolley
SKU:CRA-11d6b3
Durable Heavy Duty Square Festoon Tow Trolley with 150 lb load capacity and zinc-plated steel construction for indoor and outdoor use.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Heavy Duty Square Festoon Tow Trolley
$199.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Square Festoon Tow Trolley
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

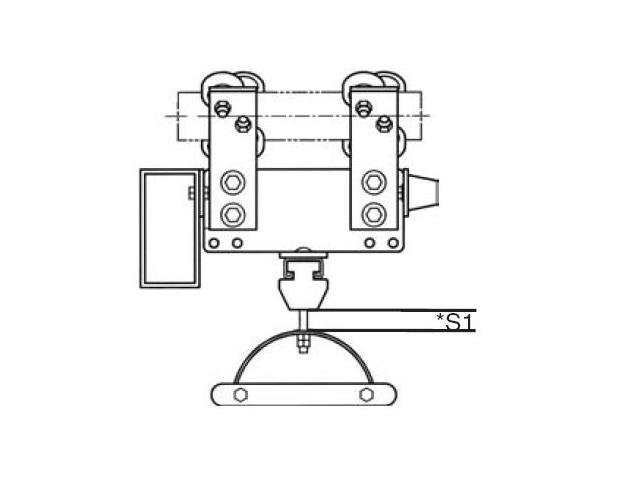

The Heavy Duty Square Festoon Tow Trolley is a robust solution designed for both indoor and outdoor applications, featuring a durable all-steel body with an aluminum cable saddle for reliable performance. This trolley is optimized for flat cable usage, equipped with zinc-plated steel components and neoprene rubber cable pads. With a load capacity of 150 lb and a speed rating of 250 fpm, it provides smooth and efficient operation. The trolley is compliant with industry standards for crane control and electrification, making it a dependable choice for heavy-duty square festoon systems.
Product Specifications
Specifications Body Material
Zinc Plated Steel
Specifications Cable Pad Material
Neoprene rubber
Specifications Cable Window Height S1
0.8 in
Specifications Cable Window Width
3.9 in
Specifications Hardware Material
Zinc Plated Steel
Specifications Load
150 lb
Specifications Main Rollers Diameter
1.77 in
Specifications No Required Per System
One - tow trolley is supplied with towing box for tow bar.
Specifications Saddle Diameter
8 in
Specifications Saddle Material
Aluminum
Specifications Saddle Width
5 1/4 in
Specifications Speed
250 fpm
Specifications Unit Length
11 1/8 in
Specifications Used For
Round Cable
Specifications Weight
14.0 lb
