Heavy Duty Square Festoon Tow Trolley
Heavy Duty Square Festoon Tow Trolley
SKU:CRA-2046e4
Durable stainless steel tow trolley for flat cable management, indoors or outdoors. Ensures safe and efficient crane control. Meets industry standards.
Regular price
$239.99
Regular price
Sale price
$239.99
Unit price
per
Initiate Order
Heavy Duty Square Festoon Tow Trolley
$239.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Square Festoon Tow Trolley
$239.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

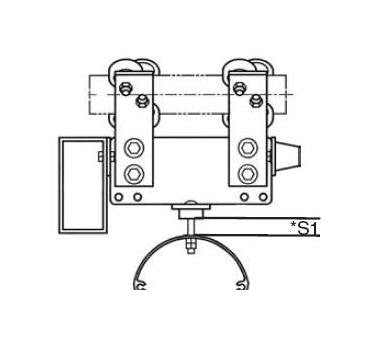

The Heavy Duty Square Festoon Tow Trolley is expertly constructed with a stainless steel body and aluminum cable saddle for durability in indoor and outdoor settings. Featuring standard steel wheels with sealed ball bearings, this trolley is ideal for flat cable applications. With a load capacity of 150 lb and a speed of 250 fpm, it ensures efficient and reliable operation. The trolley's innovative design includes neoprene rubber cable pads, providing secure and safe cable management while meeting the highest quality standards for crane control and electrification.
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Cable Pad Material
Neoprene rubber
Specifications Cable Window Height S1
2.0 in
Specifications Cable Window Width
3.9 in
Specifications Hardware Material
Stainless Steel
Specifications Load
150 lb
Specifications Main Rollers Diameter
1.77 in
Specifications No Required Per System
One - tow trolley is supplied with towing box for tow bar.
Specifications Saddle Diameter
8 in
Specifications Saddle Material
Aluminum
Specifications Saddle Width
5 1/4 in
Specifications Speed
250 fpm
Specifications Unit Length
11 1/8 in
Specifications Used For
Flat Cable
Specifications Weight
13.5 lb
