Heavy-Duty Staggered Multiple Pulling Harness
Heavy-Duty Staggered Multiple Pulling Harness
SKU:PUL-eccbcc
Heavy-Duty Staggered Multiple Pulling Harness for secure and efficient heavy pulling operations.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Heavy-Duty Staggered Multiple Pulling Harness
$129.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Staggered Multiple Pulling Harness
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

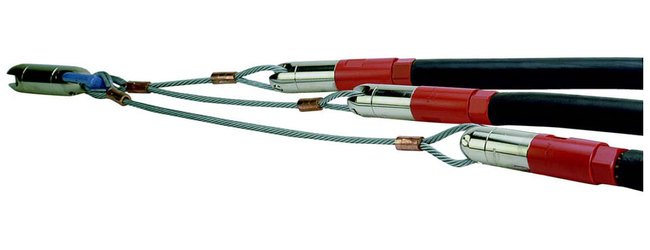

The Heavy-Duty Staggered Multiple Pulling Harness is a robust solution designed for heavy pulling tasks. With a working load of 7000lb per leg and 15000lb combined, this harness ensures secure and efficient pulling operations. The 4 Way design with 1/2" (13 mm) cable provides strength and durability. Featuring a maximum width of 3.75 inches, 12-inch separation between legs, and sturdy lead ring with a 0.87-inch diameter, this harness guarantees reliable performance. Note: 10 & 12 Way harnesses have a single stagger, while all others are sequentially staggered for optimized functionality.
Product Specifications
Specifications Lead Ring Diameter C In
0.87
Specifications Lead Ring Diameter C Mm
22
Specifications Leg Diameter D In
0.50
Specifications Leg Diameter D Mm
13
Specifications Max Width A In
3.75
Specifications Max Width A Mm
95
Specifications Note
10 & 12 Way 3/8" (10 mm) harnesses only have a single stagger. All other harnesses are sequentially staggered.
Specifications Separation Between Legs B In
12
Specifications Separation Between Legs B Mm
305
Specifications Working Load Combined Lb
15000
Specifications Working Load Combined N
66720
Specifications Working Load Per Leg Lb
7000
Specifications Working Load Per Leg N
31136
