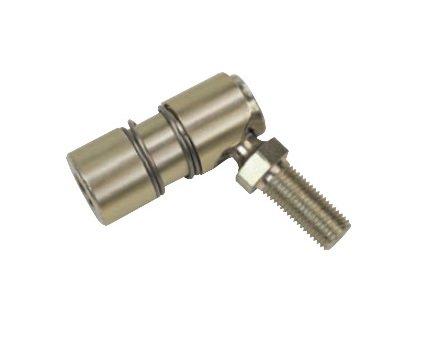

Heavy-Duty Stainless Steel Ball Joint

Name: Heavy-Duty Stainless Steel Ball Joint
Brand: Lexco Cable Manufacturing
SKU: PUS-fede27
Price: 29.99 USD
Availability: OutOfStock

SKU:PUS-fede27

Durable stainless steel ball joint for light to medium-duty linkage applications, with quick disconnect assembly and wide temperature range.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy-Duty Stainless Steel Ball Joint from the S/SS/SC series is designed for light to medium-duty linkage applications in various industries. With a steel ball stud, sleeve, and body, this ball joint ensures optimal load distribution and durability. The quick disconnect assembly allows for easy maintenance and access without the need for tools. Operating efficiently in temperatures ranging from -60 Â°F to 250 Â°F (-51 Â°C to 121 Â°C), this ball joint offers versatility and reliability. Customizable options are available to meet specific requirements, and the S/SS series complies with SAE J490 specifications, ensuring quality and performance.

Product Specifications

Applications 0

Light to medium-duty linkage applications, including:Cable assembliesLight industrial applicationsAgricultural, lawn and garden equipmentRacing (throttle links)

Features 0

Three different configurations, all with steel ball stud, sleeve and body to match your load and cost requirementsQuick pull back, "no tools required" disconnect assembly provides easier access, faster maintenanceCan be used in a wide range of temperatures: -60 ÂºF - 250 ÂºF (-51 ÂºC - 121 ÂºC) Right and left-handed versions availableCustom sizes and assemblies can be built to your specificationsS/SS Series meets SAE J490 specification (S: type S/style 1, SS: type S/style 2)

Material 0

Ball Stud - Low Carbon Steel, Heat Treated, Zinc Plated, Yellow Dichromate TreatedSleeve - Low Carbon Steel, Zinc Plated, Yellow Dichromate TreatedBody: S and SS - Low Carbon SteelBody: SC - Low Carbon Steel, Heat Treated, Zinc Plated, Yellow Dichromate TreatedSpring: S and SS - Stainless SteelSpring Clip: SC - Hardened Spring Steel

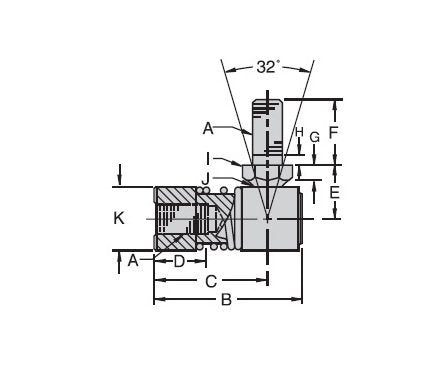

Specifications A Unf

1/4-28 "

Specifications Ball Diameter Ref

0.345 "

Specifications B 0020

1.250 "

Specifications C 0020

0.969 "

Specifications D Min

0.531 "

Specifications E 0020

0.469 "

Specifications F 0020

0.562 "

Specifications G Ref

0.125 "

Specifications H Ref

0.078 "

Specifications I Ref

0.375 "

Specifications J Ref

0.192 "

Specifications K Ref

0.562 "

Specifications Temperature Range

-60 to 250 ÂºF | -51 to 121 ÂºC

Specifications Type

CAGE

0T9L4

NAICS

332510

PSC

4030

Heavy-Duty Stainless Steel Ball Joint
