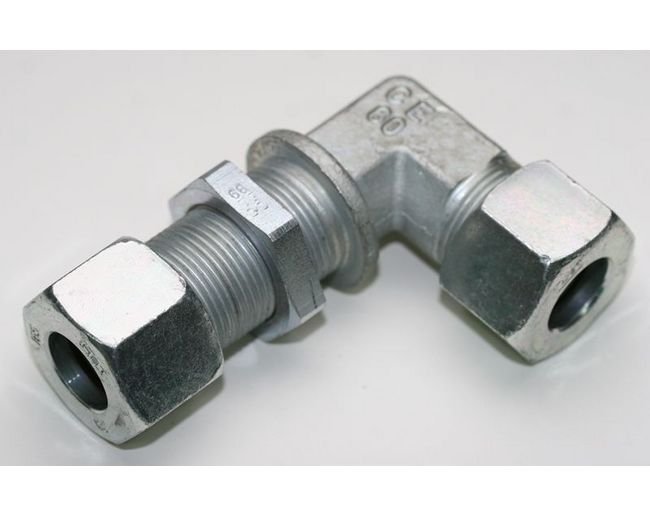

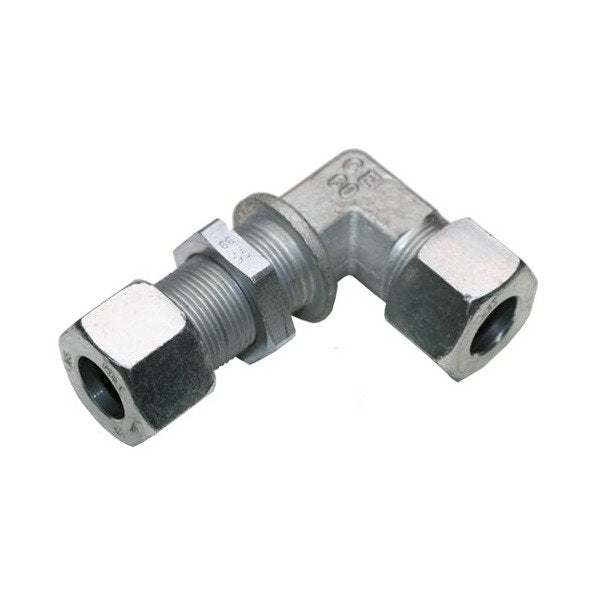

Heavy Duty Stainless Steel Bulkhead Elbow with Equipped B3 Ring
Heavy Duty Stainless Steel Bulkhead Elbow with Equipped B3 Ring
SKU:FIT-0b70c9
High-performance Stainless Steel Bulkhead Elbow for heavy-duty applications. DIN 2353 compliant.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Heavy Duty Stainless Steel Bulkhead Elbow with Equipped B3 Ring
$59.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Stainless Steel Bulkhead Elbow with Equipped B3 Ring
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Stainless Steel Bulkhead Elbow with Equipped B3 Ring offers exceptional durability and performance for high-pressure applications, with a tube diameter of 30.0mm and a nominal operating pressure of 400 bar. Crafted to meet DIN 2353 standards, this fitting ensures reliable and leak-free connections, providing peace of mind in demanding industrial settings.

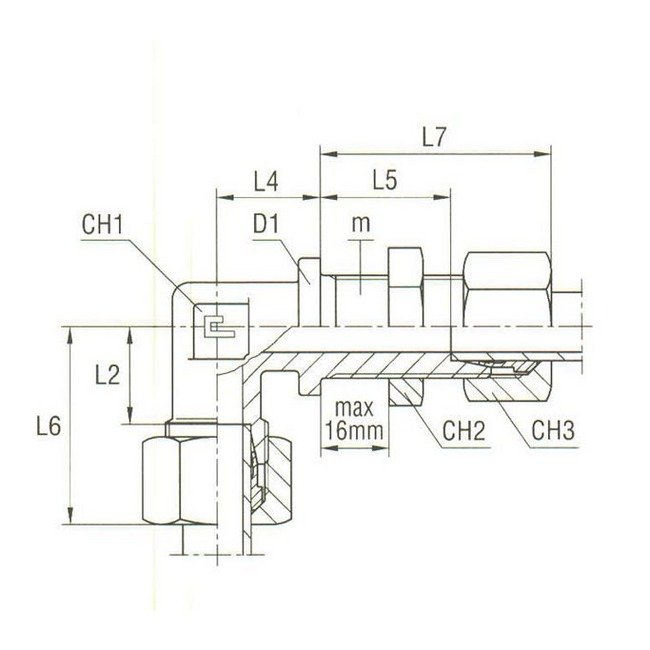

Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
50 mm
Specifications Ch3
50 mm
Specifications D1
50 mm
Specifications L2
35.5 mm
Specifications L4
39.0 mm
Specifications L5
37.5 mm
Specifications L6
49 mm
Specifications L7
64 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
42x2
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
30.0 mm
