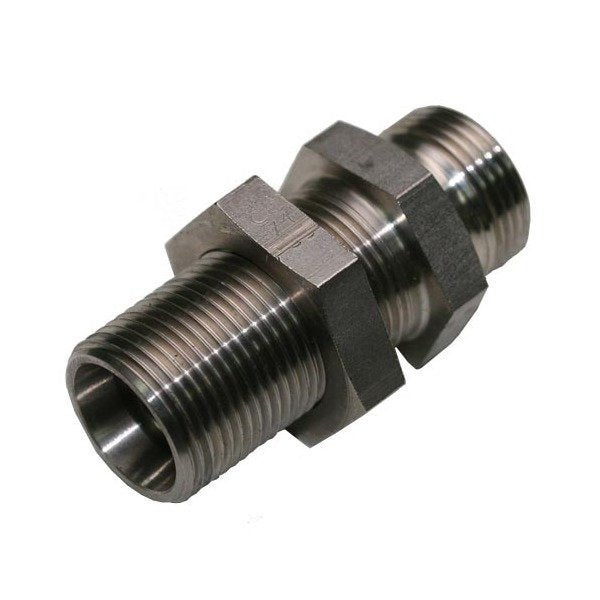

Heavy Duty Stainless Steel Bulkhead Union Body, DIN 2353 Compression Fitting - 25.0mm
Heavy Duty Stainless Steel Bulkhead Union Body, DIN 2353 Compression Fitting - 25.0mm
SKU:FIT-b3de59
Durable Stainless Steel Bulkhead Union Body for High-Pressure Applications, DIN 2353 Compliant
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Heavy Duty Stainless Steel Bulkhead Union Body, DIN 2353 Compression Fitting - 25.0mm
$45.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Stainless Steel Bulkhead Union Body, DIN 2353 Compression Fitting - 25.0mm
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Stainless Steel Bulkhead Union Body 25.0mm is engineered for durability and reliability in high-pressure environments, meeting DIN 2353 standards. Constructed from premium stainless steel, this fitting ensures longevity and optimal performance. With a nominal operating pressure of 400 bar, precise threading of 36x2, and dimensions meeting institutional requirements, this bulkhead connection guarantees secure and efficient tube connectivity.
Product Specifications
Specifications Ch1
46 mm
Specifications Ch2
46 mm
Specifications L1
32.0 mm
Specifications L2
47 mm
Specifications L3
20.0 mm
Specifications L4
35 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
36x2
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
25.0 mm
