Heavy Duty Stainless Steel Bulkhead Union - Equipped B3 Ring

Name: Heavy Duty Stainless Steel Bulkhead Union - Equipped B3 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-1021cd
Price: 59.99 USD
Availability: OutOfStock

SKU:FIT-1021cd

Heavy Duty Stainless Steel Bulkhead Union for high-pressure applications, DIN 2353 compliant

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

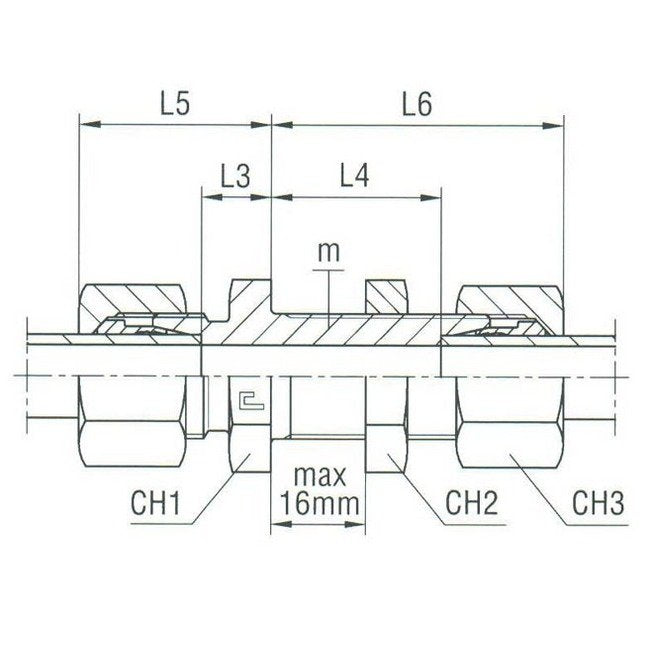

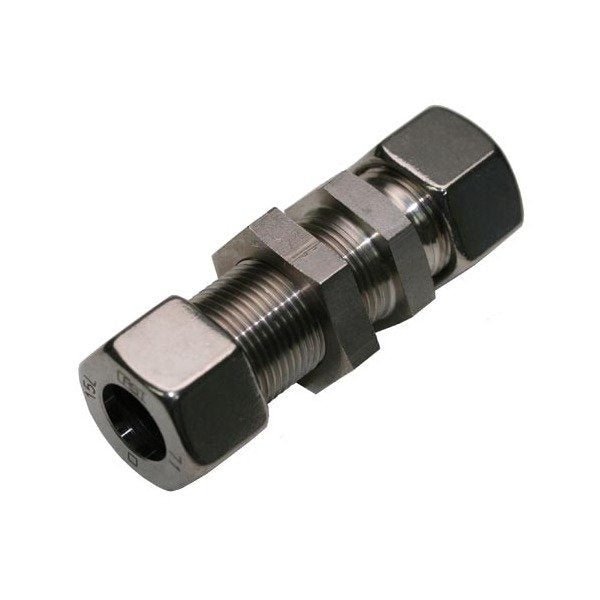

The Heavy Duty Stainless Steel Bulkhead Union featuring the Equipped B3 Ring is a premium compression fitting designed for rigorous industrial applications. Constructed from durable stainless steel, this fitting ensures reliable performance under high pressure, with a nominal operating pressure of 630 bar. Meeting DIN 2353 standards, it offers precise tube diameter compatibility of 14.0 mm and a secure 22x1.5 threading. With dimensions L3: 17.0 mm, L4: 32.0 mm, L5: 35 mm, L6: 50 mm, CH1: 30 mm, CH2: 30 mm, and CH3: 27 mm, this fitting delivers both resilience and precision for critical systems.

Product Specifications

Specifications Ch1

30 mm

Specifications Ch2

30 mm

Specifications Ch3

27 mm

Specifications L3

17.0 mm

Specifications L4

32.0 mm

Specifications L5

35 mm

Specifications L6

50 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

22x1.5

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

14.0 mm

Heavy Duty Stainless Steel Bulkhead Union - Equipped B3 Ring
