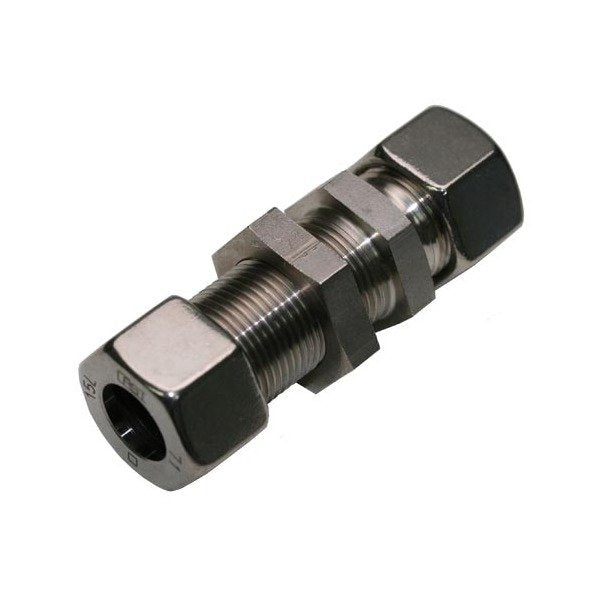

Heavy Duty Stainless Steel Bulkhead Union with 12.0mm Tube Diameter

Name: Heavy Duty Stainless Steel Bulkhead Union with 12.0mm Tube Diameter
Brand: World Wide Metric, Inc.
SKU: FIT-1da4df
Price: 45.99 USD
Availability: OutOfStock

SKU:FIT-1da4df

Heavy Duty Stainless Steel Bulkhead Union for 12.0mm tubes, meets DIN 2353 standards, operating up to 630 bar.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

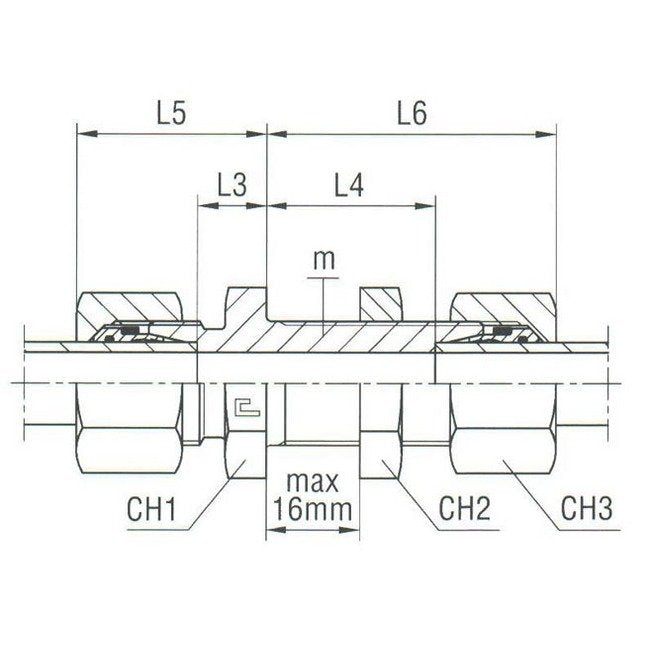

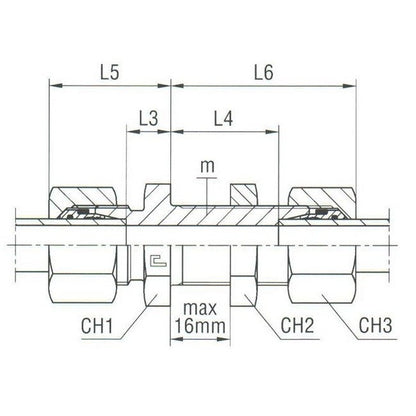

The Heavy Duty Stainless Steel Bulkhead Union is designed for superior performance in demanding environments. With a tube diameter of 12.0mm and a robust construction meeting DIN 2353 standards, this fitting ensures reliable connections under pressure. Operating at up to 630 bar, it features precise threading (20x1.5) for secure installations. The compact design with dimensions of L3: 14.5mm, L4: 30.5mm, L5: 31mm, L6: 47mm, CH1: 27mm, CH2: 27mm, CH3: 24mm makes it ideal for space-restricted applications.

Product Specifications

Specifications Ch1

27 mm

Specifications Ch2

27 mm

Specifications Ch3

24 mm

Specifications L3

14.5 mm

Specifications L4

30.5 mm

Specifications L5

31 mm

Specifications L6

47 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

20x1.5

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm
