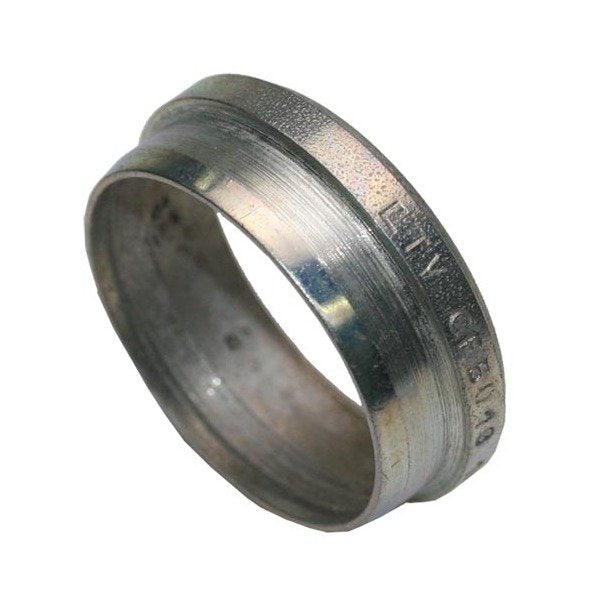

Heavy Duty Stainless Steel Cutting Ring B3 - 20.0 mm
Heavy Duty Stainless Steel Cutting Ring B3 - 20.0 mm
SKU:FIT-12e83b
High-performance stainless steel cutting ring for 400 bar applications, DIN 2353 compliant
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Heavy Duty Stainless Steel Cutting Ring B3 - 20.0 mm
$29.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Stainless Steel Cutting Ring B3 - 20.0 mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Cutting Ring B3 is a heavy-duty stainless steel compression fitting designed for demanding applications. With a nominal operating pressure of 400 bar, this cutting ring ensures reliable and leak-free connections in high-pressure systems. Compliant with DIN 2353 standards, it features a tube diameter of 20.0 mm, L1 length of 12.0 mm, and D1 diameter of 26 mm, making it a robust choice for industrial environments.
Product Specifications
Specifications D1
26 mm
Specifications L1
12.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
20.0 mm
