Heavy Duty Stainless Steel Equal Cross - 16mm Tube, 400 bar

Name: Heavy Duty Stainless Steel Equal Cross - 16mm Tube, 400 bar
Brand: World Wide Metric, Inc.
SKU: FIT-b83aba
Price: 39.99 USD
Availability: OutOfStock

SKU:FIT-b83aba

Durable Heavy Duty Stainless Steel Equal Cross for 16mm Tubes, 400 bar. DIN 2353 Compliant.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

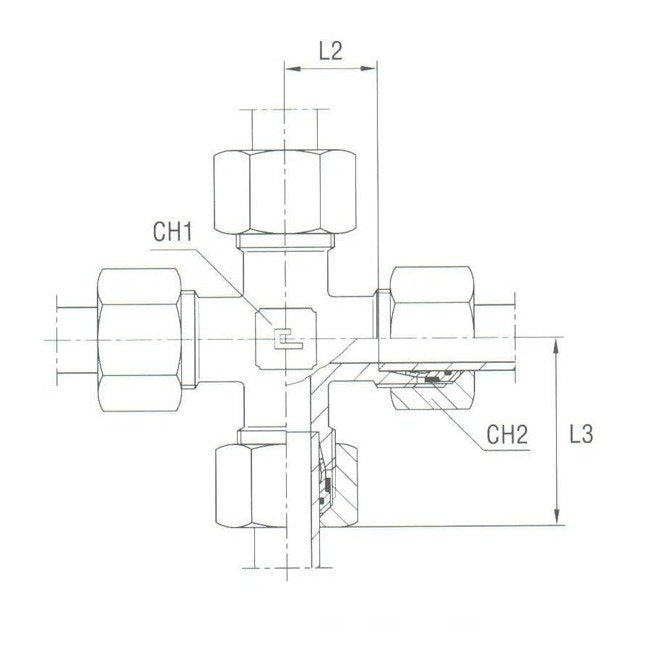

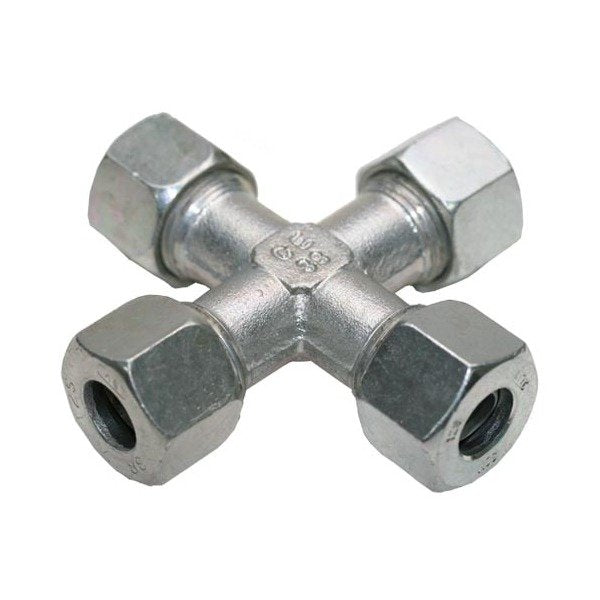

The Heavy Duty Stainless Steel Equal Cross - Equipped B4 Ring is a reliable fitting designed for demanding industrial applications. Constructed with durable stainless steel, this fitting ensures longevity and performance under high pressure conditions up to 400 bar. Meeting DIN 2353 standards, it guarantees compatibility and precision in various hydraulic systems. With precise dimensions to fit 16.0mm tubes and CH1: 24mm, CH2: 30mm, L2: 24.5mm, L3: 43mm, this fitting offers secure connections and optimal flow control.

Product Specifications

Specifications Ch1

24 mm

Specifications Ch2

30 mm

Specifications L2

24.5 mm

Specifications L3

43 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

400 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

16.0 mm

Heavy Duty Stainless Steel Equal Cross - 16mm Tube, 400 bar
