Heavy Duty Stainless Steel Equal Cross - 8.0mm DIN 2353 Compression Fitting
Heavy Duty Stainless Steel Equal Cross - 8.0mm DIN 2353 Compression Fitting
SKU:FIT-9c2b20
Heavy Duty Stainless Steel Equal Cross for Precise Hydraulic Systems
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Heavy Duty Stainless Steel Equal Cross - 8.0mm DIN 2353 Compression Fitting
$34.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Stainless Steel Equal Cross - 8.0mm DIN 2353 Compression Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

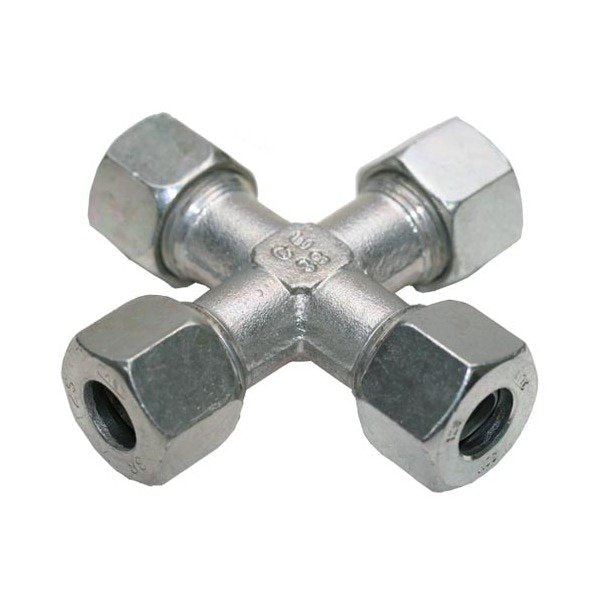

Upgrade your hydraulic systems with our Heavy Duty Stainless Steel Equal Cross - Equipped B4 Ring. Built to withstand pressure up to 630 bar, this fitting ensures secure connections with precise tubing of 8.0mm diameter. Compliant with DIN 2353 standards, the equal cross design provides efficient distribution without compromises.

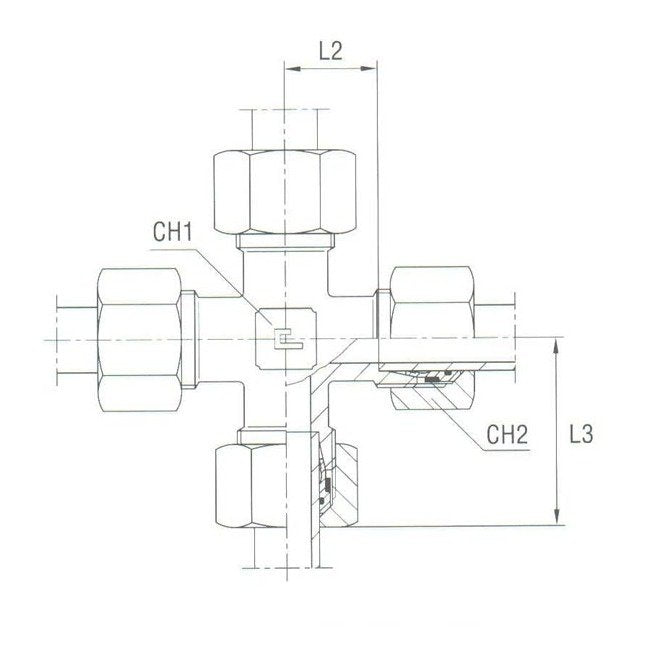

Product Specifications
Specifications Ch1
14 mm
Specifications Ch2
19.0 mm
Specifications L2
17.0 mm
Specifications L3
32.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
8.0 mm
