Heavy Duty Stainless Steel Equal Cross Body Compression Fitting
Heavy Duty Stainless Steel Equal Cross Body Compression Fitting
SKU:FIT-abba06
Premium Stainless Steel Equal Cross Fitting for Heavy Duty Applications - DIN 2353 Compliant
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Heavy Duty Stainless Steel Equal Cross Body Compression Fitting
$45.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Stainless Steel Equal Cross Body Compression Fitting
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

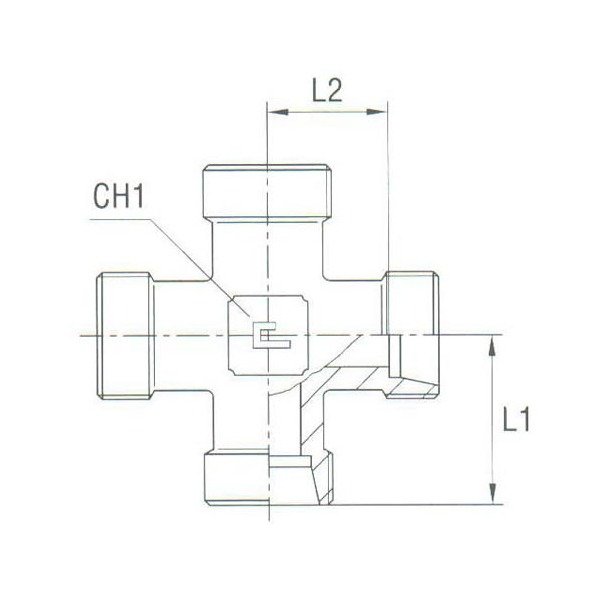

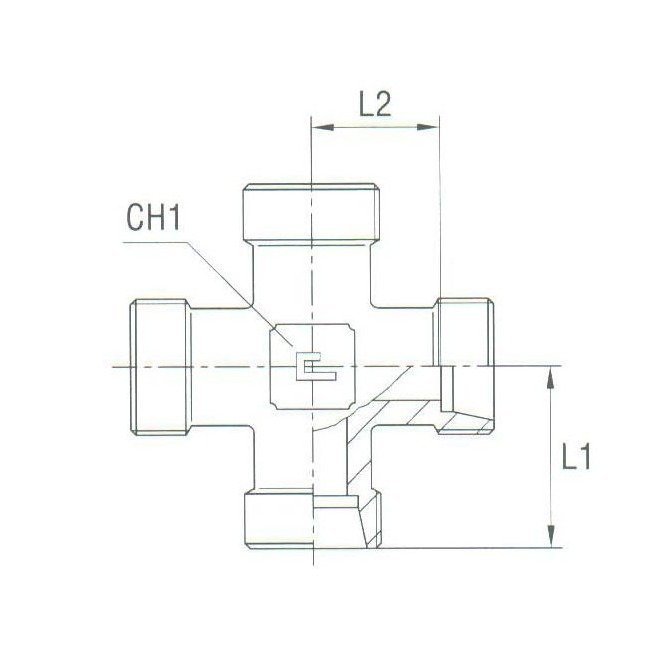

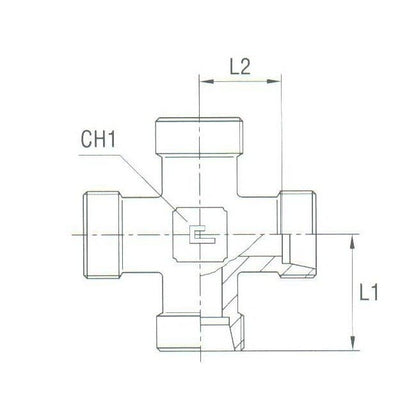

The Heavy Duty Stainless Steel Equal Cross Body Only Compression Fitting is designed for robust industrial applications, featuring a tube diameter of 30.0 mm and a nominal operating pressure of 400 bar. Crafted to meet DIN 2353 standards, this fitting ensures durability and performance under high-pressure conditions. With precise dimensions including L1: 49.0 mm, L2: 35.5 mm, and CH1: 41 mm, it offers reliable connectivity for fluid systems.
Product Specifications
Specifications Ch1
41 mm
Specifications L1
49.0 mm
Specifications L2
35.5 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
30.0 mm
