Heavy Duty Stainless Steel Equal Cross - DIN 2353 Compression Fitting

Name: Heavy Duty Stainless Steel Equal Cross - DIN 2353 Compression Fitting
Brand: World Wide Metric, Inc.
SKU: FIT-f8384a
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-f8384a

Heavy Duty Stainless Steel Equal Cross for high-pressure applications, DIN 2353 compliant

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

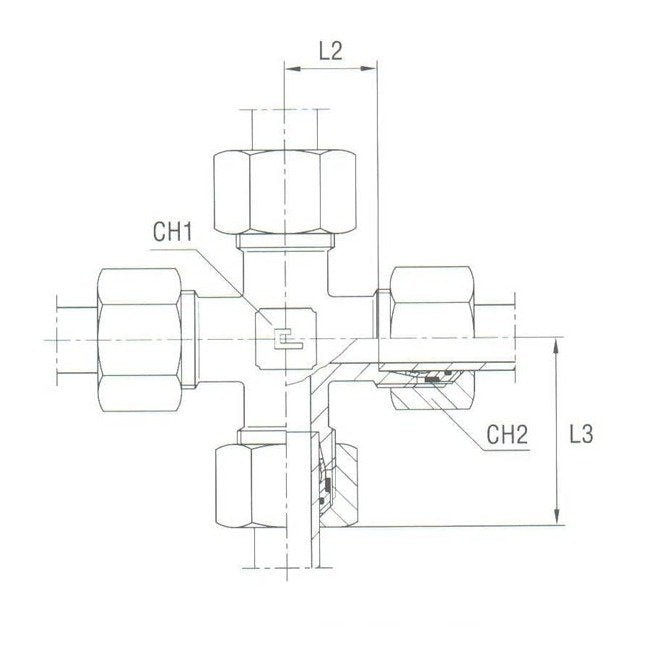

The Heavy Duty Stainless Steel Equal Cross - DIN 2353 Compression Fitting is designed for robust performance in high-pressure applications, with a tube diameter of 20.0 mm and a nominal operating pressure of 400 bar. Crafted from premium stainless steel, this fitting ensures durability and corrosion resistance. The Equipped B4 Ring offers precise measurements with L2 at 26.5 mm, L3 at 48 mm, CH1 at 27 mm, and CH2 at 36 mm. Compliant with DIN 2353 standards, it meets the stringent requirements of industrial applications, promising reliability and longevity.

Product Specifications

Specifications Ch1

27 mm

Specifications Ch2

36 mm

Specifications L2

26.5 mm

Specifications L3

48 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

400 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

20.0 mm

Heavy Duty Stainless Steel Equal Cross - DIN 2353 Compression Fitting
