Heavy Duty Stainless Steel Equal Elbow - Equipped B3 Ring
Heavy Duty Stainless Steel Equal Elbow - Equipped B3 Ring
SKU:FIT-52acda
Upgrade to Heavy Duty Stainless Steel Equal Elbow - Equipped B3 Ring for durable, high-pressure performance. DIN 2353 compliant.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Heavy Duty Stainless Steel Equal Elbow - Equipped B3 Ring
$39.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Stainless Steel Equal Elbow - Equipped B3 Ring
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

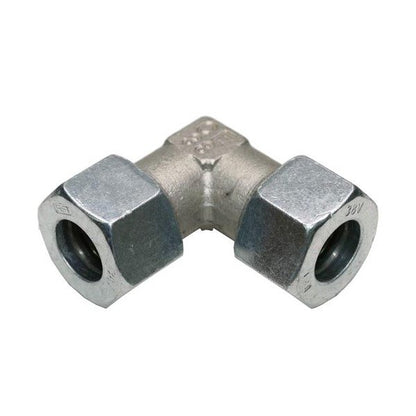

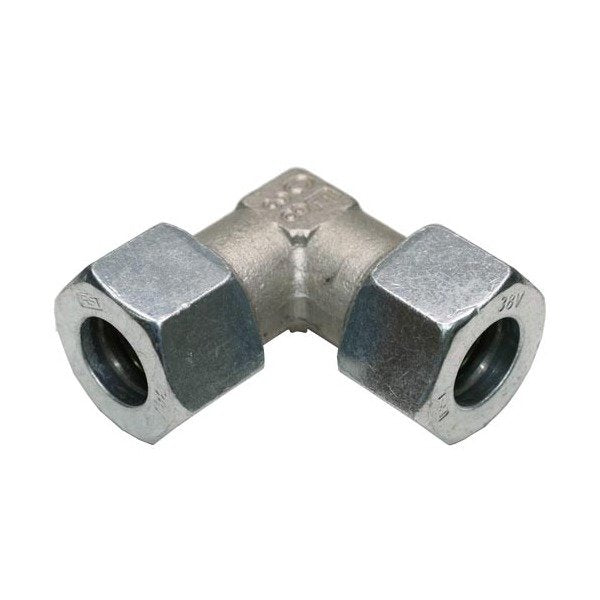

The Heavy Duty Stainless Steel Equal Elbow with Equipped B3 Ring is a premium fitting designed for demanding industrial applications. Constructed with high-quality stainless steel, it ensures durability and corrosion resistance. With a tube diameter of 25.0mm and a nominal operating pressure of 400 bar, this fitting excels under high-pressure conditions. Compliant with DIN 2353 standards, it guarantees reliability and precision in fluid systems. Upgrade to this Equal Elbow for superior performance and longevity in your installations.

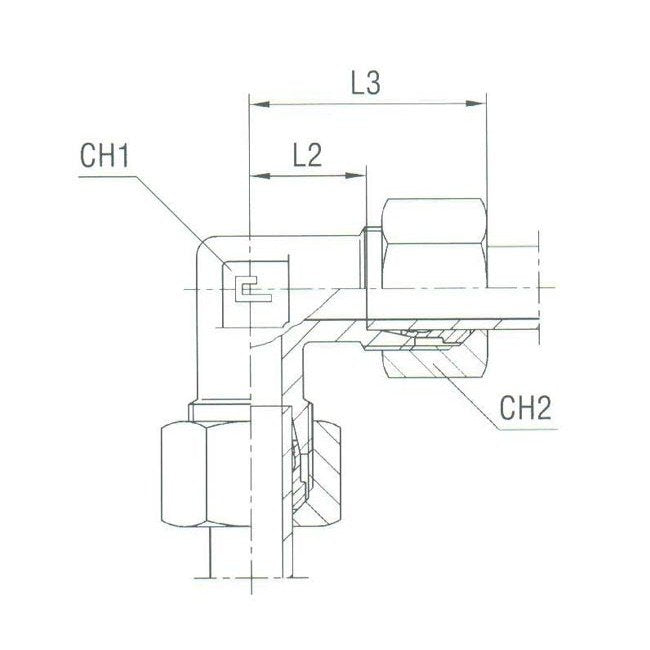

Product Specifications
Specifications Ch1
36 mm
Specifications Ch2
46 mm
Specifications L2
30.0 mm
Specifications L3
54 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
25.0 mm
