Heavy Duty Stainless Steel Equal Non Return Valve - Equipped B4 Ring
Heavy Duty Stainless Steel Equal Non Return Valve - Equipped B4 Ring
SKU:FIT-bbea23
High-performance Stainless Steel Non Return Valve for heavy-duty hydraulic systems. Operates at 400 bar pressure.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Heavy Duty Stainless Steel Equal Non Return Valve - Equipped B4 Ring
$59.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Stainless Steel Equal Non Return Valve - Equipped B4 Ring
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Stainless Steel Equal Non Return Valve with Equipped B4 Ring is designed for optimal performance in hydraulic systems. With a nominal operating pressure of 400 bar, this valve ensures reliable and efficient flow control. Crafted from high-quality stainless steel, it offers durability and resistance to corrosion, making it ideal for industrial applications. The precise dimensions and quality construction of this valve guarantee precise operation and long-lasting functionality.

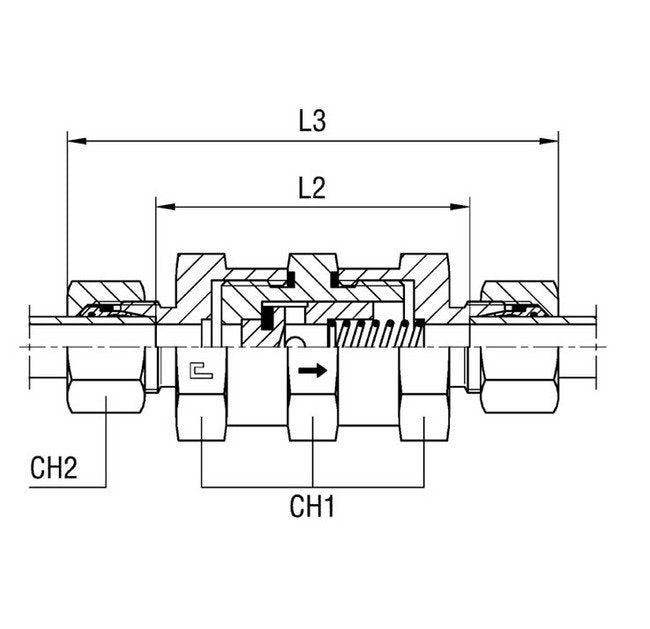

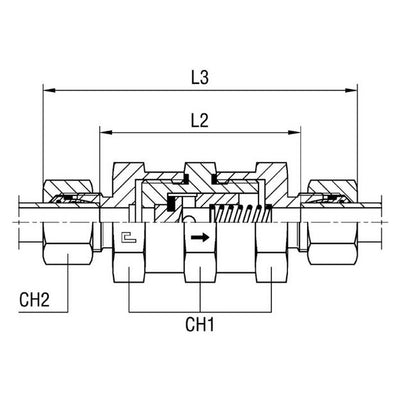

Product Specifications
Specifications Ch1
32 mm
Specifications Ch2
22 mm
Specifications Diameter Pass
7 mm
Specifications L2
63 mm
Specifications L3
95 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
10.0 mm
