Heavy Duty Stainless Steel Equal Non Return Valve with B4 Ring - 38.0mm
Heavy Duty Stainless Steel Equal Non Return Valve with B4 Ring - 38.0mm
SKU:FIT-93a817
High-performance Stainless Steel Non Return Valve for hydraulic systems, 250 bar, with B4 Ring
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Heavy Duty Stainless Steel Equal Non Return Valve with B4 Ring - 38.0mm
$79.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Stainless Steel Equal Non Return Valve with B4 Ring - 38.0mm
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

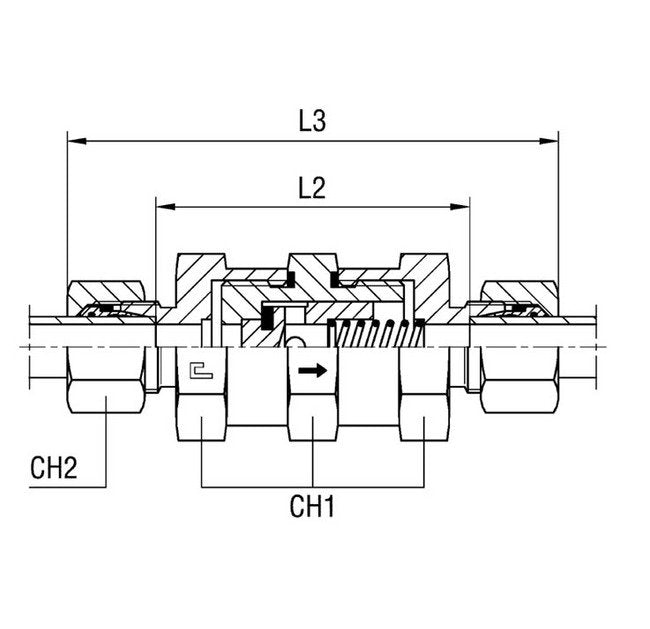

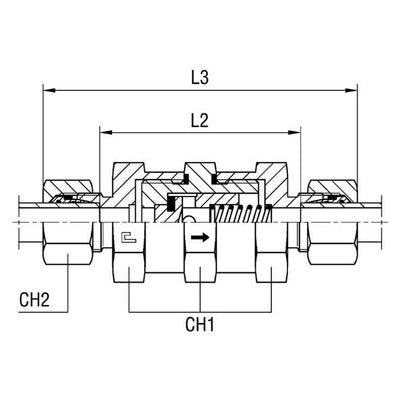

The Heavy Duty Stainless Steel Equal Non Return Valve, equipped with a B4 Ring, is a reliable choice for hydraulic systems. With a Nominal Operating Pressure of 250 bar, this valve ensures secure flow control. Constructed from premium stainless steel, it offers durability and resistance to corrosion. The precise dimensions of L2, L3, CH1, CH2, and Diameter Pass. make it suitable for high-pressure applications. This valve is designed to meet the stringent requirements of institutional and government procurement standards.
Product Specifications
Specifications Ch1
70 mm
Specifications Ch2
60 mm
Specifications Diameter Pass
29 mm
Specifications L2
96 mm
Specifications L3
157 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
38.0 mm
