The Equal Non Return Valve - Equipped B4 Ring is designed for heavy-duty applications with a nominal operating pressure of 400 bar. Constructed from high-quality stainless steel, this valve ensures durability and reliable performance. With a tube diameter of 20.0 mm and precise dimensions, it offers seamless integration into hydraulic systems. The inclusion of a B4 ring enhances its efficiency and operational stability, making it ideal for industrial settings. Compliant with industry standards, this valve is a dependable choice for hydraulic check valve installations.

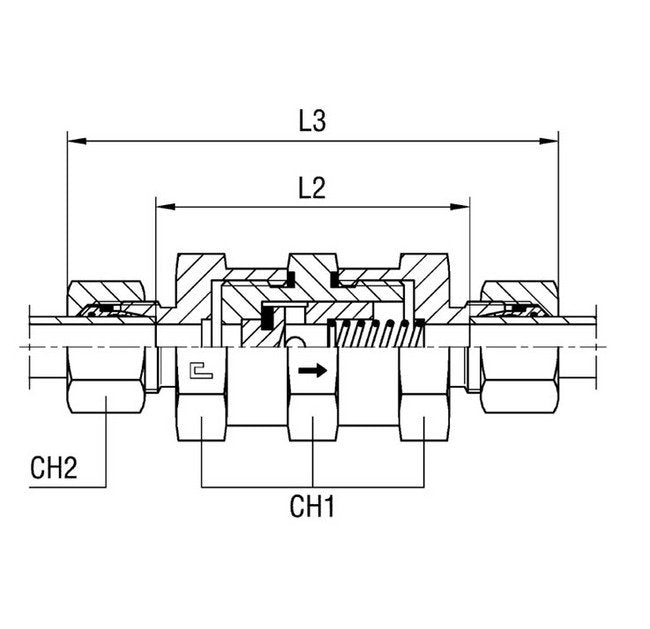

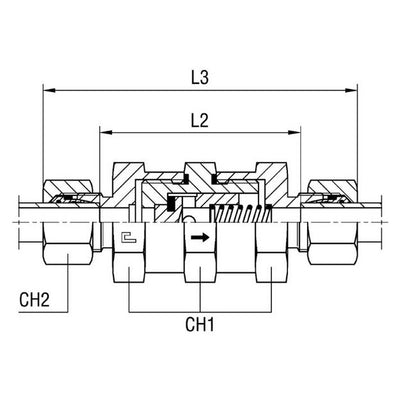

Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
36 mm
Specifications Diameter Pass
16 mm
Specifications L2
77 mm
Specifications L3
120 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
20.0 mm
