Heavy Duty Stainless Steel Equal Tee with DIN 2353 Compression Fittings
Heavy Duty Stainless Steel Equal Tee with DIN 2353 Compression Fittings
SKU:FIT-8efece
Premium stainless steel Equal Tee with DIN 2353 Compression, ideal for high-pressure systems.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Heavy Duty Stainless Steel Equal Tee with DIN 2353 Compression Fittings
$29.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Stainless Steel Equal Tee with DIN 2353 Compression Fittings
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

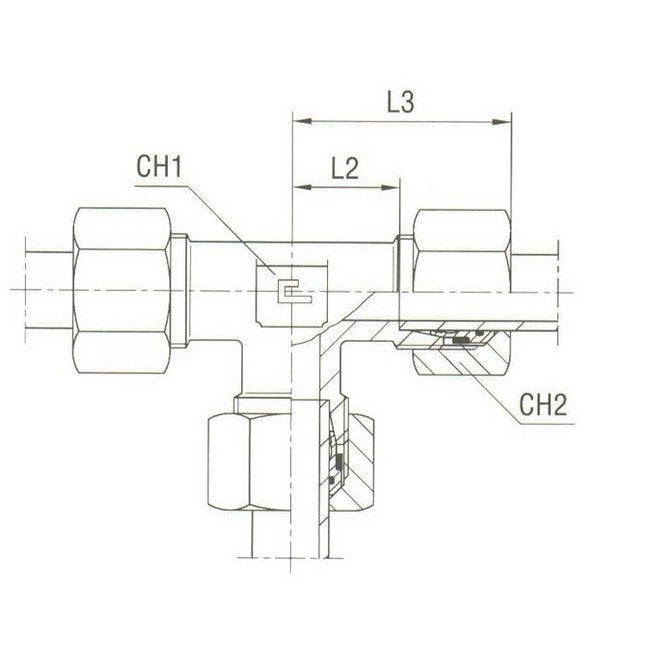

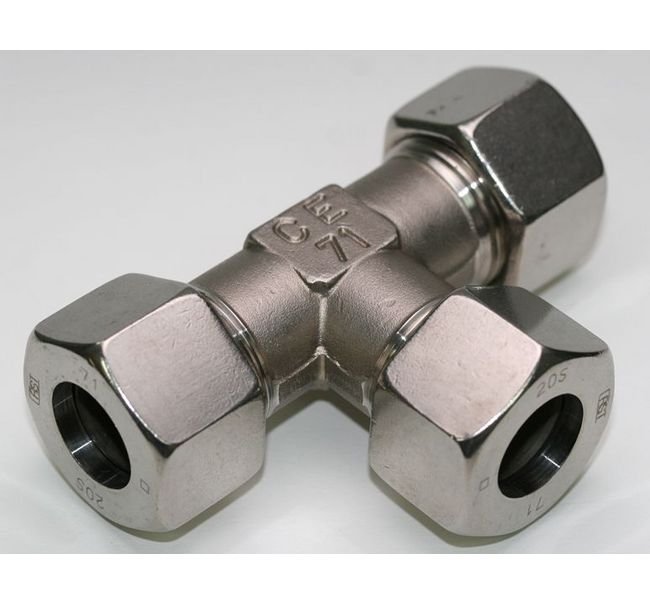

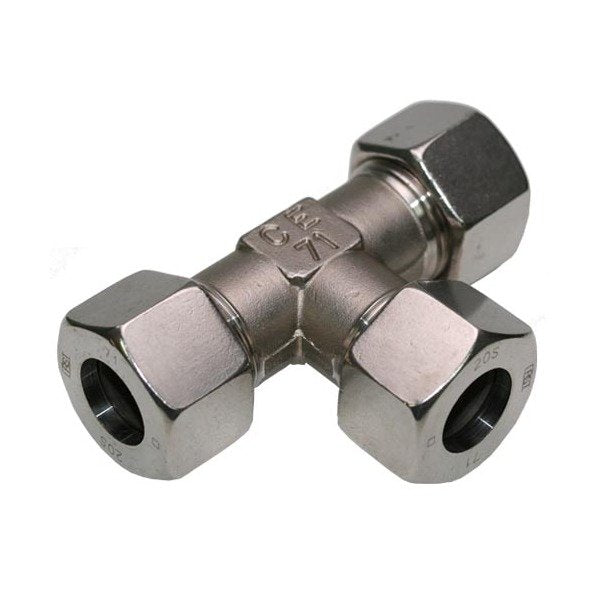

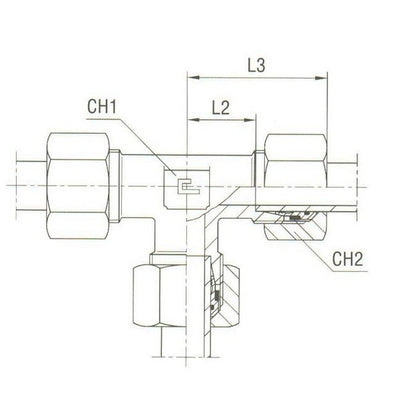

The Equal Tee - Equipped B4 Ring is a heavy-duty fitting made of premium stainless steel, designed for durability and reliable performance. With a tube diameter of 12.0 mm and a nominal operating pressure of 630 bar, this tee ensures secure connections in high-pressure systems. Measuring L2: 21.5 mm and L3: 38.0 mm, it offers precise dimensions for seamless installation. Compliant with DIN 2353 standards, this fitting is ideal for industrial applications requiring top-notch quality and longevity.
Product Specifications
Specifications Ch1
17.0 mm
Specifications Ch2
24 mm
Specifications L2
21.5 mm
Specifications L3
38.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
