Heavy Duty Stainless Steel Eye Bolt with UNC Thread - 316 Grade

Heavy Duty Stainless Steel Eye Bolt with UNC Thread - 316 Grade

SKU:STA-f79766

Durable Heavy Duty Stainless Steel Eye Bolt with UNC thread, grade 316. Sizes 1/4" to 1", WLL 3,200 lb. Compliant with federal standards.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Heavy Duty Stainless Steel Eye Bolt with UNC Thread - 316 Grade

Heavy Duty Stainless Steel Eye Bolt with UNC Thread - 316 Grade

$29.99

Quantity: 1

Claim Your Seller Account

Heavy Duty Stainless Steel Eye Bolt with UNC Thread - 316 Grade

Heavy Duty Stainless Steel Eye Bolt with UNC Thread - 316 Grade

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

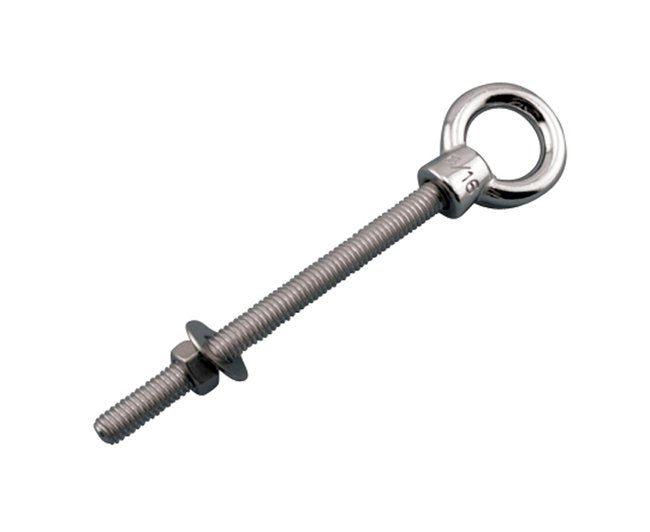

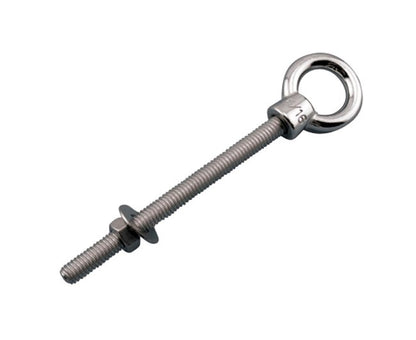

The Heavy Duty Stainless Steel Eye Bolt with UNC thread is a durable and corrosion-resistant solution for heavy-duty applications. Featuring a fully threaded rod welded into an eye nut, this bolt comes with one nut and washer. Available in sizes from 1/4" to 1", it is precision-crafted from grade 316 stainless steel. With a working load limit of 3,200 lb, this eye bolt offers reliability and strength, making it ideal for industrial, construction, and marine use. Compliant with federal procurement standards and GSA requirements, this eye bolt ensures both quality and performance for institutional buyers.

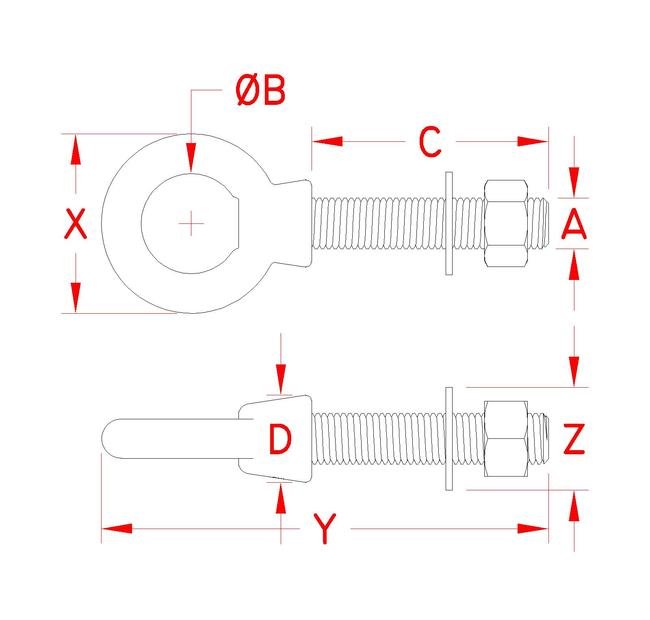

Product Specifications

Specifications Dimension A
5/8 in
Specifications Dimension B
1.34 in
Specifications Dimension C
6.00 in
Specifications Dimension D
1.19 in
Specifications Dimension X
2.45 in
Specifications Dimension Y
8.70 in
Specifications Dimension Z
1.31 in
Specifications Fabrication Type
Precision Cast | Precision Machined
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
1.1 lb
Specifications Working Load Limit Wll
3,200 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
