Heavy Duty Stainless Steel Male Stud Coupling Metric Parallel
Heavy Duty Stainless Steel Male Stud Coupling Metric Parallel
SKU:FIT-b6c5c1
Premium stainless steel male stud coupling for high-pressure applications. DIN 2353 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Heavy Duty Stainless Steel Male Stud Coupling Metric Parallel
$29.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Stainless Steel Male Stud Coupling Metric Parallel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Stainless Steel Male Stud Coupling with O-Ring and Washer is a reliable and durable fitting designed for high-pressure applications. Constructed from premium stainless steel, it ensures longevity and corrosion resistance. With a tube diameter of 20.0 mm, a nominal operating pressure of 315 bar, and meeting DIN 2353 standards, this coupling offers exceptional performance in demanding industrial environments.

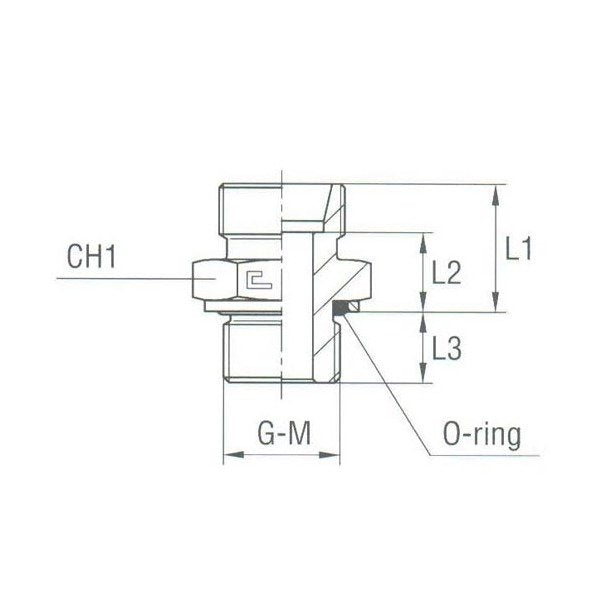

Product Specifications
Specifications Ch1
32 mm
Specifications L1
31.0 mm
Specifications L2
20.5 mm
Specifications L3
16.5 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
27x2
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
20.0 mm
Category 6
Male Stud Coupling with O-Ring and Washer Thread Metric Parallel
