Heavy Duty Stainless Steel Male Stud Coupling - Metric Parallel (22x1.5)

Name: Heavy Duty Stainless Steel Male Stud Coupling - Metric Parallel (22x1.5)
Brand: World Wide Metric, Inc.
SKU: FIT-82c76e
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-82c76e

Durable Stainless Steel Male Stud Coupling with O-Ring and Washer, Metric Parallel, DIN 2353 Compliant

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy Duty Stainless Steel Male Stud Coupling offers exceptional performance and durability for industrial applications. With a tube diameter of 16.0mm and a nominal operating pressure of 315 bar, this coupling is designed to withstand high-pressure environments. Featuring an O-Ring and Washer for a secure seal, it meets DIN 2353 standards, ensuring quality and reliability. The Metric Parallel thread size of 22x1.5 provides a precise fit for seamless connections.

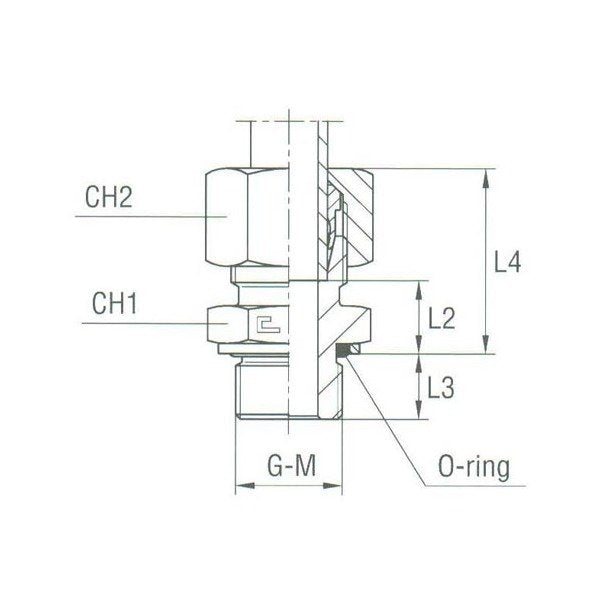

Product Specifications

Specifications Ch1

27 mm

Specifications Ch2

30 mm

Specifications L2

18.4 mm

Specifications L3

13.6 mm

Specifications L4

36.9 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

22x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

16.0 mm

Category 6

Male Stud Coupling with O-Ring and Washer Thread Metric Parallel

Heavy Duty Stainless Steel Male Stud Coupling - Metric Parallel (22x1.5)
