Heavy Duty Stainless Steel Straight Coupling - Body Only

Name: Heavy Duty Stainless Steel Straight Coupling - Body Only
Brand: World Wide Metric, Inc.
SKU: FIT-493421
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-493421

Premium stainless steel straight coupling for heavy-duty industrial applications. DIN 2353 compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

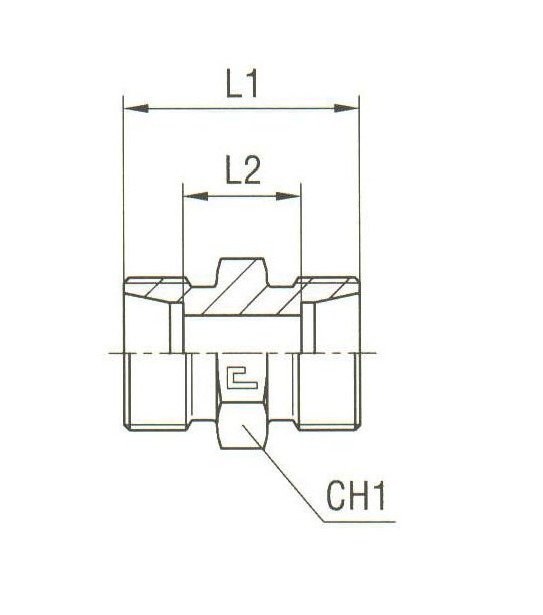

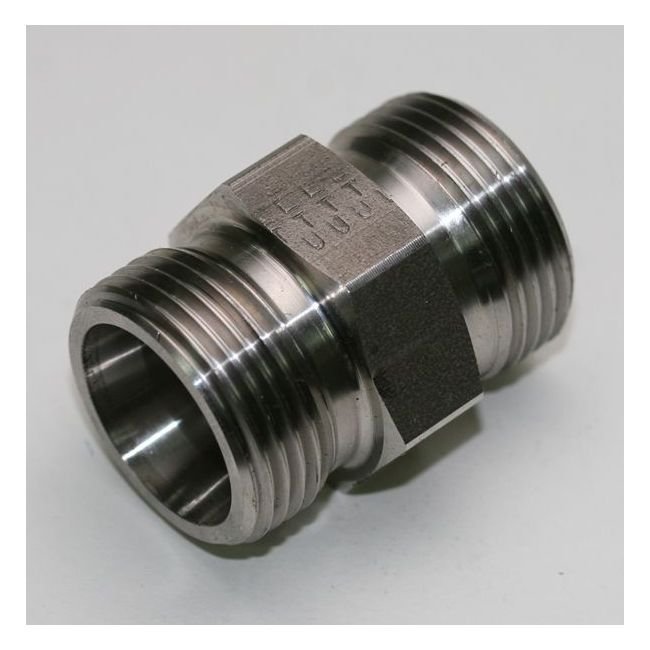

The Heavy Duty Stainless Steel Straight Coupling - Body Only is designed for industrial applications requiring high pressure tolerance. Crafted from premium stainless steel, this coupling ensures reliability and durability. With a tube diameter of 12.0 mm and a nominal operating pressure of 630 bar, it meets DIN 2353 standards for secure connections. Its compact design with precise measurements (L1: 34.0 mm, L2: 19.0 mm, CH1: 22 mm) makes it ideal for various hydraulic systems.

Product Specifications

Specifications Ch1

22 mm

Specifications L1

34.0 mm

Specifications L2

19.0 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

12.0 mm
