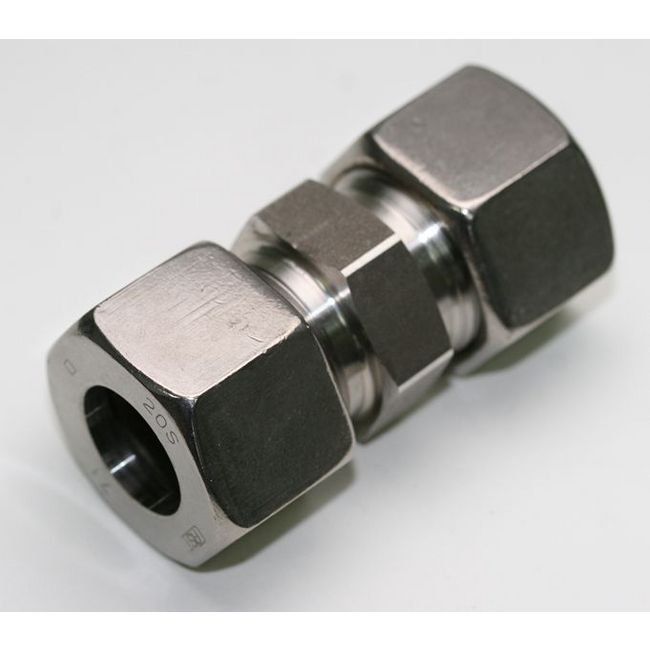

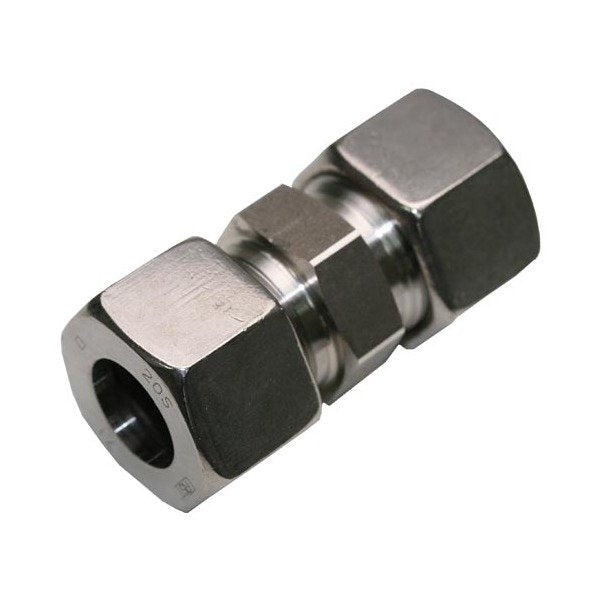

The Heavy Duty Stainless Steel Straight Coupling - Equipped B3 Ring is designed for high-pressure applications, with a nominal operating pressure of 630 bar. Crafted from durable stainless steel, this coupling ensures reliability and longevity. Featuring a tube diameter of 20.0 mm and meeting DIN 2353 standards, it guarantees secure connections. Ideal for heavy-duty industrial use where performance and durability are paramount.

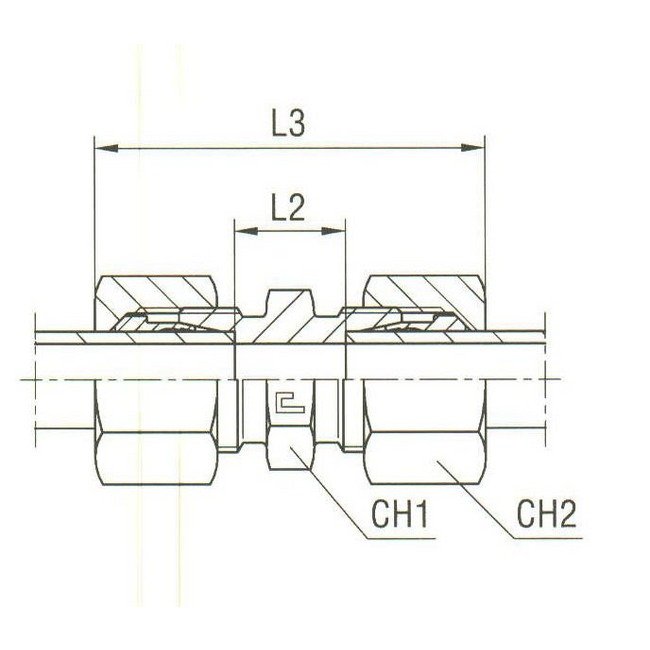

Product Specifications
Specifications Ch1
32 mm
Specifications Ch2
36 mm
Specifications L2
23.0 mm
Specifications L3
66 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
20.0 mm
