Heavy Duty Stainless Steel Straight Coupling with DIN 2353 Compliance - Body Only
Heavy Duty Stainless Steel Straight Coupling with DIN 2353 Compliance - Body Only
SKU:FIT-9921f2
Robust stainless steel straight coupling for heavy-duty applications, DIN 2353 compliant
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Heavy Duty Stainless Steel Straight Coupling with DIN 2353 Compliance - Body Only
$29.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Stainless Steel Straight Coupling with DIN 2353 Compliance - Body Only
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

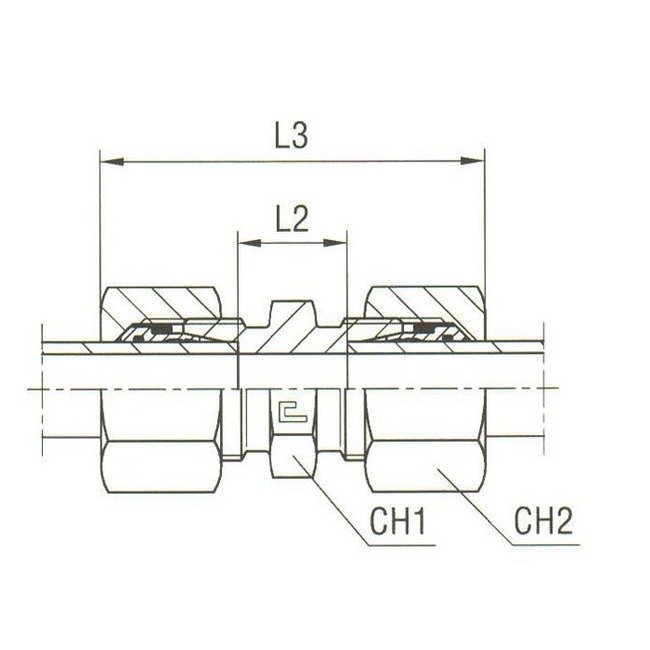

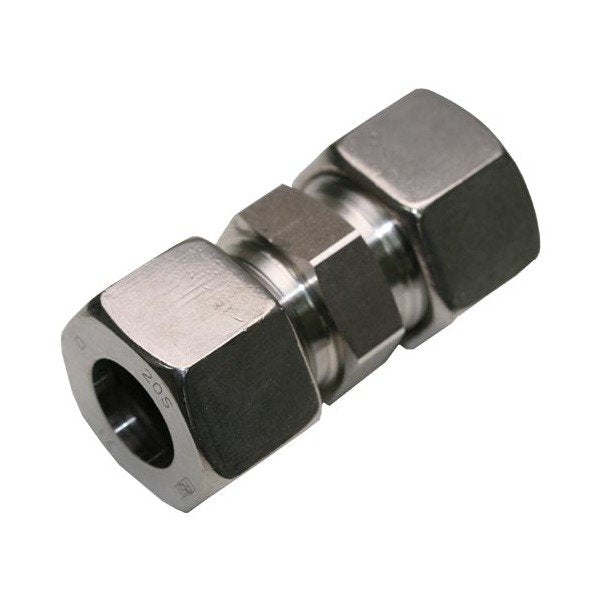

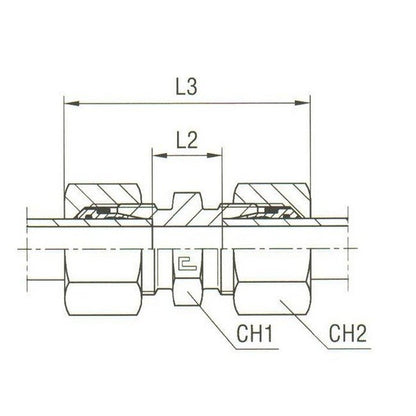

The Heavy Duty Stainless Steel Straight Coupling is a robust and reliable component equipped with B4 Ring, ideal for high-pressure applications. Constructed from premium stainless steel, it ensures durability and corrosion resistance. With a tube diameter of 12.0 mm and a nominal operating pressure of 630 bar, this coupling offers superior performance. Measuring L2: 19.0 mm, L3: 51 mm, CH1: 22 mm, and CH2: 24 mm, it meets DIN 2353 standards for precision engineering. Upgrade your hydraulic systems with this top-quality straight coupling today.
Product Specifications
Specifications Ch1
22 mm
Specifications Ch2
24 mm
Specifications L2
19.0 mm
Specifications L3
51 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
