Heavy Duty Stainless Steel Straight Coupling with DIN 2353 Compression Fittings
Heavy Duty Stainless Steel Straight Coupling with DIN 2353 Compression Fittings
SKU:FIT-d105a6
High-quality stainless steel straight coupling for heavy-duty industrial applications. DIN 2353 compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy Duty Stainless Steel Straight Coupling with DIN 2353 Compression Fittings
$49.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Stainless Steel Straight Coupling with DIN 2353 Compression Fittings
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Stainless Steel Straight Coupling is a reliable solution for industrial applications, featuring a robust design suitable for heavy-duty operations. Constructed from high-quality stainless steel, it provides durability and corrosion resistance. With a tube diameter of 25.0mm and a nominal operating pressure of 630 bar, this coupling ensures secure connections. Compliant with DIN 2353 standards, it meets stringent quality requirements for optimal performance.

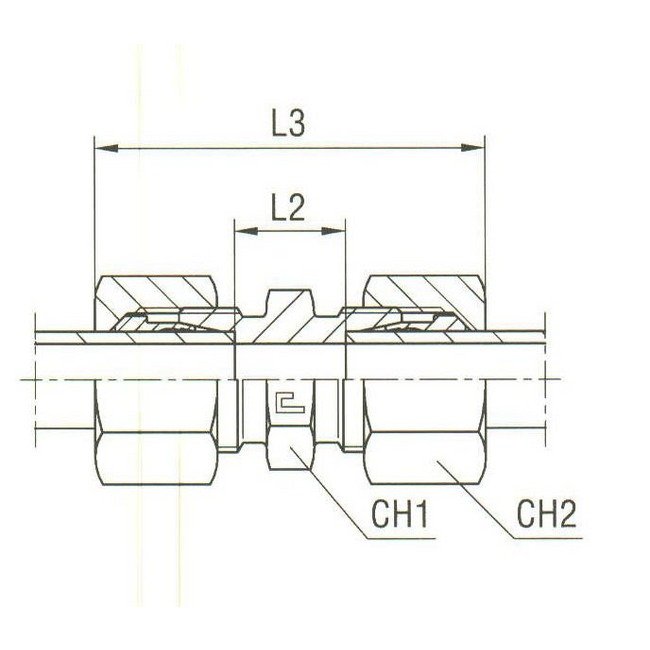

Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
46 mm
Specifications L2
26.0 mm
Specifications L3
74 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
25.0 mm
